Res Thick Film 2010 24.9Ω 1% 0.75W3/4W ±100ppm/℃ Pad SMD Automotive T/R
Res Thick Film 2010 24.9 Ohm 1% 0.75W3/4W ±100ppm/°C Molded SMD Automotive T/R
立创商城:
24.9Ω ±1% 750mW
得捷:
RES SMD 24.9 OHM 1% 3/4W 2010
贸泽:
Thick Film Resistors - SMD 2010 24.9ohms 1% AEC-Q200
艾睿:

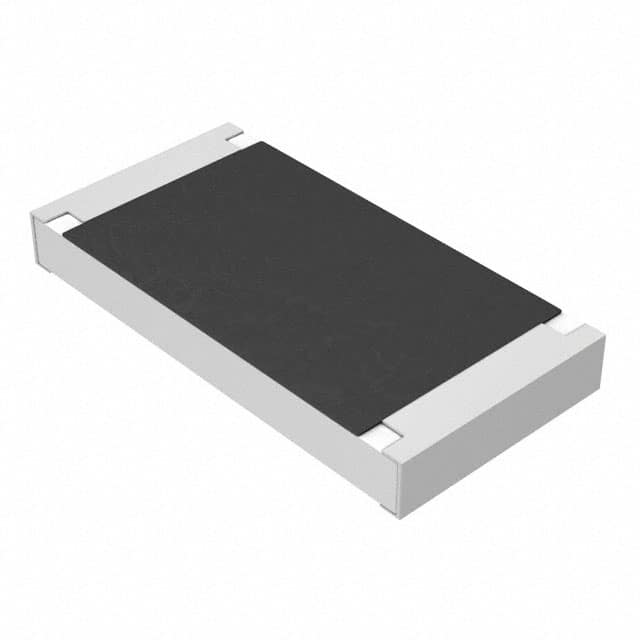

Use this ERJ-12SF24R9U fixed single surface-mount resistor from Panasonic to obtain a visually clean layout. This product has a resistance value of 24.9 Ohm. This dependable part has a power rating of 0.75 3/4 W. Its temperature coefficient is ±100 ppm/°C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This product is 5 mm long, 0.6 mm tall and 2.5 mm deep. This part has an operating temperature of -55 to 155 °C. It has a tolerance of 1%. This device is made with thick film technology.
Verical:
Res Thick Film 2010 24.9 Ohm 1% 0.75W3/4W ±100ppm/C Molded SMD Automotive T/R
MASTER:
Res Thick Film 2010 24.9 Ohm 1% 0.75W3/4W ±100ppm/°C Pad SMD Automotive T/R
Online Components:
Res Thick Film 2010 24.9 Ohm 1% 0.75W3/4W ±100ppm/°C Pad SMD Automotive T/R
Electro Sonic:
Res Thick Film 2010 24.9 Ohm 1% 0.75W3/4W ±100ppm/°C Pad SMD Automotive T/R
额定电压DC 200 V
额定功率 0.75 W
电阻 24.9 Ω
阻值偏差 ±1 %
工作温度Max 155 ℃
工作温度Min 55 ℃
额定电压 200 V
安装方式 Surface Mount
封装公制 5025
封装 2010

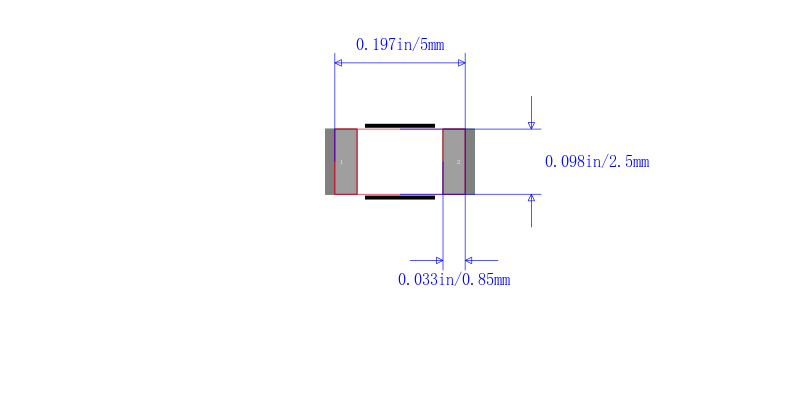

长度 5 mm
宽度 2.5 mm
高度 0.6 mm
封装公制 5025
封装 2010
工作温度 -55℃ ~ 155℃
温度系数 ±100 ppm/℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8533210030
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ERJ-12SF24R9U Panasonic 松下 | 当前型号 | 当前型号 |
CRCW201024R9FKEF 威世 | 功能相似 | ERJ-12SF24R9U和CRCW201024R9FKEF的区别 |
NRC50F24R9TRF NIC | 功能相似 | ERJ-12SF24R9U和NRC50F24R9TRF的区别 |
