ERJ-L06KF10CV概述

ERJ 系列 0805 100 mΩ ±1 % 0.25 W ±100 ppm/°C 模压 厚膜 贴片电阻

100 ±1% 0.25W,1/4W 芯片 0805(2012 公制) 汽车级 AEC-Q200,电流检测 厚膜


得捷:
RES 0.1 OHM 1% 1/4W 0805


艾睿:
Use this ERJ-L06KF10CV fixed single surface-mount resistor from Panasonic to obtain a visually clean layout. This product has a resistance value of 100m Ohm. This part has a power rating of 0.25 1/4 W. It is also complete with current sensing technology. Its temperature coefficient is ±100 ppm/°C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This part has an operating temperature of -55 to 125 °C. This product is 2 mm long, 0.6 mm tall and 1.25 mm deep. This device is made with thick film technology. It has a tolerance of 1%.


Verical:
Res Thick Film 0805 0.1 Ohm 1% 0.25W1/4W ±100ppm/C Molded SMD Automotive T/R


Newark:
# PANASONIC ELECTRONIC COMPONENTS  ERJ-L06KF10CV  SMD Current Sense Resistor, 0.1 ohm, 125 mW, 0805 [2012 Metric], ± 1%, ERJL06 Series


MASTER:
Res Thick Film 0805 0.1 Ohm 1% 0.25W1/4W ±100ppm/°C Pad SMD Automotive T/R


Online Components:
Res Thick Film 0805 0.1 Ohm 1% 0.25W1/4W ±100ppm/°C Pad SMD Automotive T/R


Electro Sonic:
Res Thick Film 0805 0.1 Ohm 1% 0.25W1/4W ±100ppm/°C Pad SMD Automotive T/R


ERJ-L06KF10CV中文资料参数规格
技术参数

容差 ±1 %

额定功率 0.25 W

电阻 100 mΩ

阻值偏差 ±1 %

工作温度Max 125 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

引脚数 2

封装公制 2012

封装 0805

外形尺寸

长度 2.00 mm

宽度 1.25 mm

高度 0.6 mm

封装公制 2012

封装 0805

物理参数

工作温度 -55℃ ~ 125℃

温度系数 ±100 ppm/℃

其他

产品生命周期 Unknown

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

海关信息

ECCN代码 EAR99

HTS代码 8533210030

数据手册

ERJ-L06KF10CV引脚图与封装图

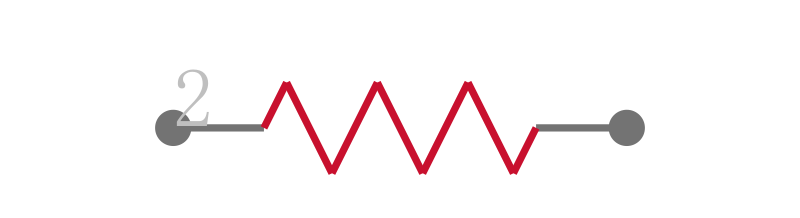

ERJ-L06KF10CV引脚图

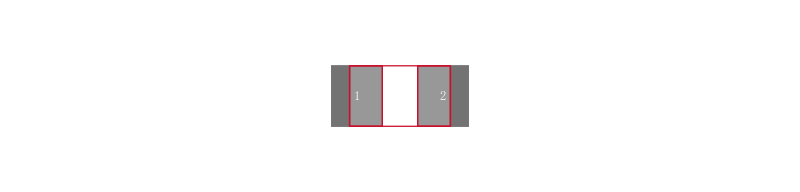

ERJ-L06KF10CV封装图

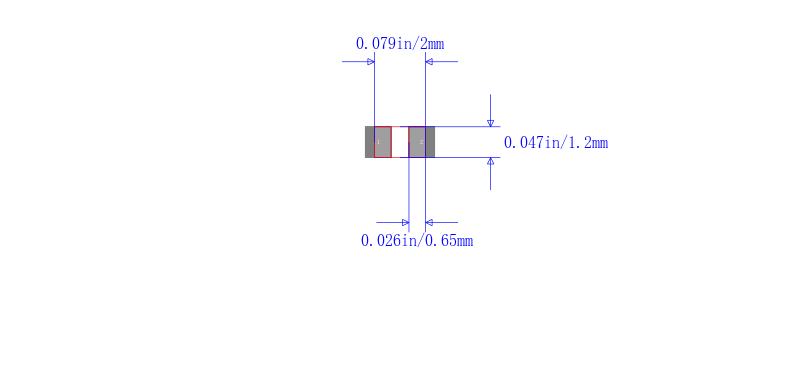

ERJ-L06KF10CV封装焊盘图
在线购买ERJ-L06KF10CV
型号: ERJ-L06KF10CV
制造商: Panasonic 松下
描述:ERJ 系列 0805 100 mΩ ±1 % 0.25 W ±100 ppm/°C 模压 厚膜 贴片电阻
替代型号ERJ-L06KF10CV
型号/品牌 代替类型 替代型号对比

ERJ-L06KF10CV

Panasonic 松下

当前型号

当前型号

ERJ-L06KJ10CV

松下

类似代替

ERJ-L06KF10CV和ERJ-L06KJ10CV的区别

2-1622821-8

泰科

类似代替

ERJ-L06KF10CV和2-1622821-8的区别
