ERJ-1TYJ223U

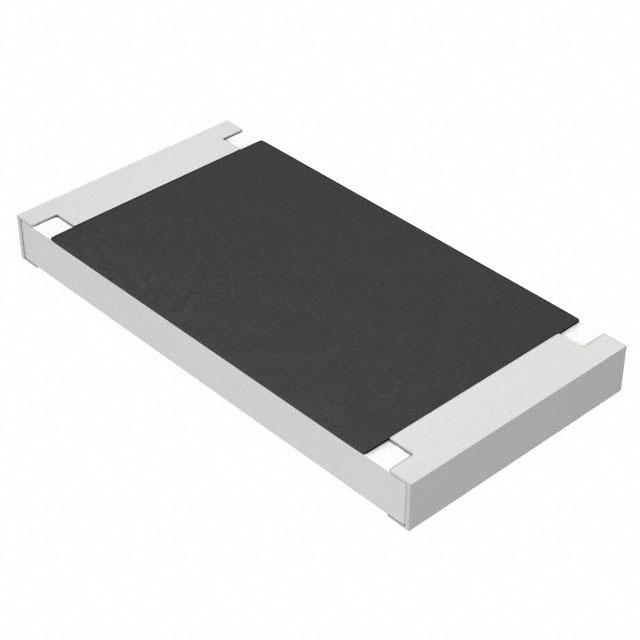

ERJ-1TYJ223U图片1
ERJ-1TYJ223U图片2
ERJ-1TYJ223U图片3
ERJ-1TYJ223U图片4
ERJ-1TYJ223U图片5
ERJ-1TYJ223U图片6
ERJ-1TYJ223U图片7
ERJ-1TYJ223U概述

Res Thick Film 2512 22KΩ 5% 1W ±200ppm/℃ Pad SMD Automotive T/R

22 kOhms ±5% 1W 芯片 2512(6432 公制) 汽车级AEC-Q200 厚膜


得捷:
RES SMD 22K OHM 5% 1W 2512


立创商城:
22kΩ ±5% 1W


艾睿:
The ERJ-1TYJ223U fixed single surface-mount resistor from Panasonic makes it easy to add resistors to your circuit board. This product has a resistance value of 22K Ohm. This durable part has a power rating of 1 W. Its temperature coefficient is ±200 ppm/°C. This component will be shipped in tape and reel packaging for effective mounting and safe delivery. This device is made with thick film technology. This part has an operating temperature of -55 to 155 °C. It has a tolerance of 5%. This product is 6.4 mm long, 0.6 mm tall and 3.2 mm deep.


Verical:
Res Thick Film 2512 22K Ohm 5% 1W ±200ppm/C Pad SMD Automotive T/R


MASTER:
Res Thick Film 2512 22K Ohm 5% 1W ±200ppm/°C Pad SMD Automotive T/R


Online Components:
Res Thick Film 2512 22K Ohm 5% 1W ±200ppm/°C Pad SMD Automotive T/R


Electro Sonic:
Res Thick Film 2512 22K Ohm 5% 1W ±200ppm/°C Pad SMD Automotive T/R


ERJ-1TYJ223U中文资料参数规格
技术参数

额定电压DC 250 V

容差 ±5 %

额定功率 1 W

电阻 22 KΩ

阻值偏差 ±5 %

工作温度Max 155 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

封装公制 6432

封装 2512

外形尺寸

长度 6.40 mm

宽度 3.20 mm

高度 0.6 mm

封装公制 6432

封装 2512

物理参数

工作温度 -55℃ ~ 155℃

温度系数 ±200 ppm/℃

其他

产品生命周期 Unknown

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

REACH SVHC标准 No SVHC

海关信息

ECCN代码 EAR99

HTS代码 8533210030

数据手册

ERJ-1TYJ223U引脚图与封装图

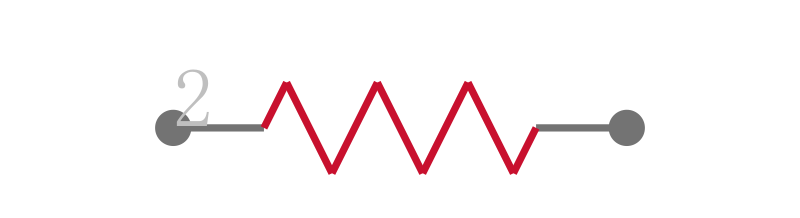

ERJ-1TYJ223U引脚图

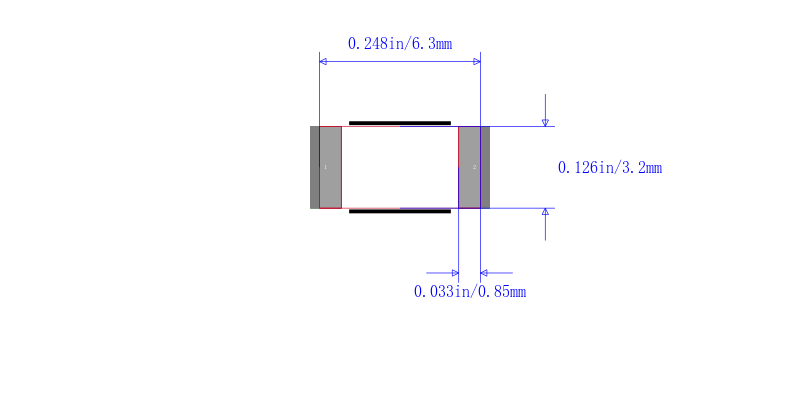

ERJ-1TYJ223U封装图

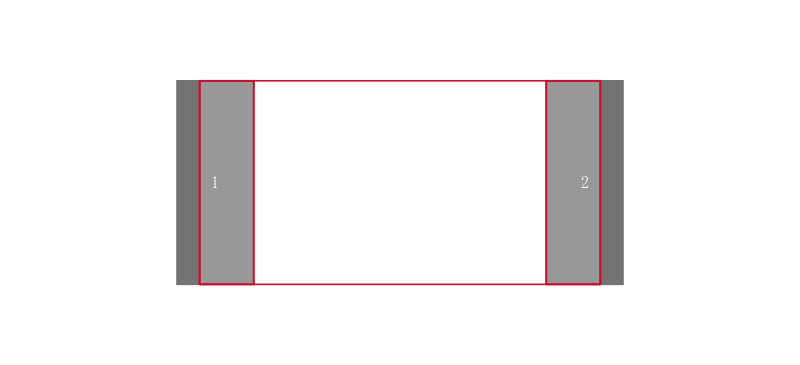

ERJ-1TYJ223U封装焊盘图
在线购买ERJ-1TYJ223U
型号: ERJ-1TYJ223U
制造商: Panasonic 松下
描述:Res Thick Film 2512 22KΩ 5% 1W ±200ppm/℃ Pad SMD Automotive T/R
