ERJ 系列 2512 200 Ω ±1 % 1 W ±100 ppm/°C 模压 厚膜 贴片电阻
Res Thick Film 2512 200 Ohm 1% 1W ±100ppm/°C Pad SMD Automotive T/R
得捷:
RES SMD 200 OHM 1% 1W 2512
立创商城:
200Ω ±1% 1W
贸泽:
Thick Film Resistors - SMD 2512 200ohms 1% AEC-Q200
艾睿:
Use this ERJ-1TNF2000U fixed single surface-mount resistor from Panasonic to obtain a visually clean layout. This dependable part has a power rating of 1 W. This product has a resistance value of 200 Ohm. Its temperature coefficient is ±100 ppm/°C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This part has an operating temperature of -55 to 155 °C. It has a tolerance of 1%. This product is 6.4 mm long, 0.6 mm tall and 3.2 mm deep. This device is made with thick film technology.
Verical:
Res Thick Film 2512 200 Ohm 1% 1W ±100ppm/C Molded SMD Automotive T/R
MASTER:
Res Thick Film 2512 200 Ohm 1% 1W ±100ppm/°C Pad SMD Automotive T/R
Online Components:
Res Thick Film 2512 200 Ohm 1% 1W ±100ppm/°C Pad SMD Automotive T/R
Electro Sonic:
Res Thick Film 2512 200 Ohm 1% 1W ±100ppm/°C Pad SMD Automotive T/R
额定电压DC 200 V
容差 ±1 %
额定功率 1 W
电阻 200 Ω
阻值偏差 ±1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
额定电压 200 V
安装方式 Surface Mount
封装公制 6432
封装 2512

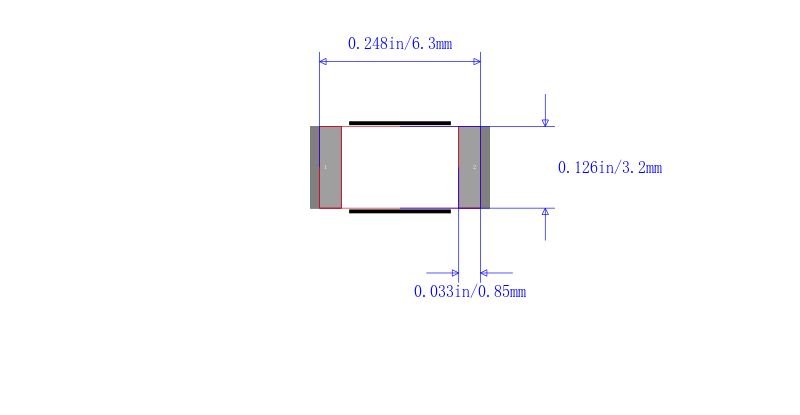

长度 6.4 mm
宽度 3.2 mm
高度 0.6 mm
封装公制 6432
封装 2512
工作温度 -55℃ ~ 155℃
温度系数 ±100 ppm/℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8533210030
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ERJ-1TNF2000U Panasonic 松下 | 当前型号 | 当前型号 |
ERJ-1TYJ201U 松下 | 类似代替 | ERJ-1TNF2000U和ERJ-1TYJ201U的区别 |
CRCW2512200RFKTG 威世 | 类似代替 | ERJ-1TNF2000U和CRCW2512200RFKTG的区别 |
RK73H3ATTE2000F KOA Speer | 类似代替 | ERJ-1TNF2000U和RK73H3ATTE2000F的区别 |
