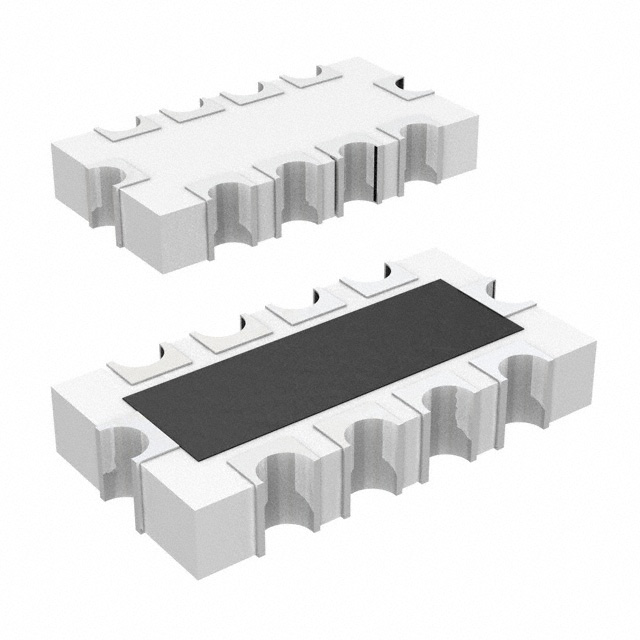

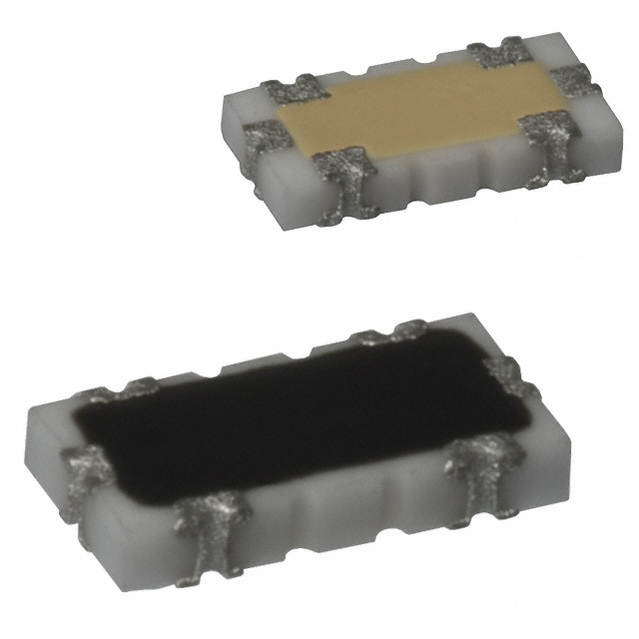

EXB-E10C473J

Res Thick Film NET 47KΩ 5% ±200ppm/℃ BUS Molded 10Pin 1608 Concave SMD T/R

47k 欧姆 ±5% 62.5mW 每元件功率 总线式 8 器网络，阵列 ±200ppm/°C 1608，凹陷，长边端子

得捷:
RES ARRAY 8 RES 47K OHM 1608

立创商城:
47kΩ ±5%

贸泽:
Resistor Networks & Arrays 1608 47Kohms 5Res Hi-Density AEC-Q200

艾睿:

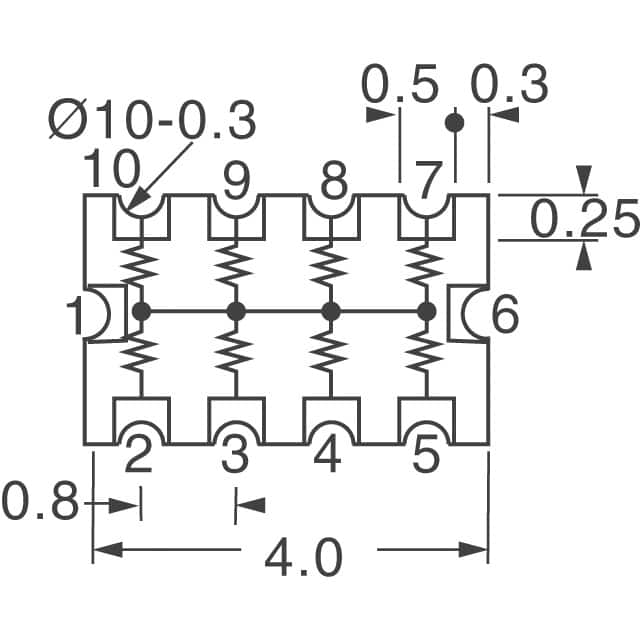

Pack multiple resistors into a single chip with this EXB-E10C473J resistor array from Panasonic. This product&s;s 8 resistors have a value of 47K Ohm. This dependable part has a power rating per resistor of 0.063 1/16 W. Its temperature coefficient is ±200 ppm/°C. It has 10 terminals. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device is made with thick film technology. This product&s;s terminal pitch is 0.8 mm. This product is 4 mm long, 0.55 mm tall and 2.1 mm deep. It has a tolerance of 5%. The EXB-E10C473J part has a concave termination style. This part has an operating temperature of -55 to 125 °C.

Chip1Stop:
Res Thick Film NET 47K Ohm 5% ±200ppm/C BUS Molded 10-Pin 1608 Concave SMD Punched Carrier T/R

Verical:
Res Thick Film NET 47K Ohm 5% ±200ppm/C BUS 10-Pin 1608 Concave SMD Automotive T/R

Electro Sonic:
Res Thick Film NET 47K Ohm 5% ±200ppm/°C BUS 10-Pin 1608 Concave SMD Automotive T/R

Win Source:
RES ARRAY 8 RES 47K OHM 1608
