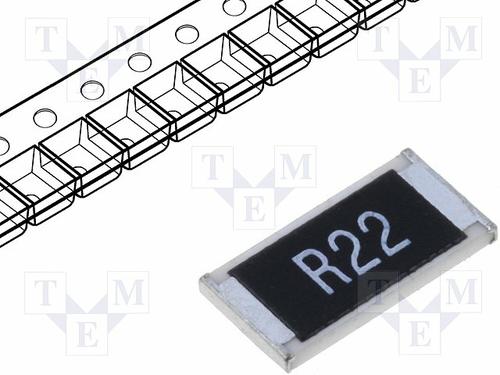

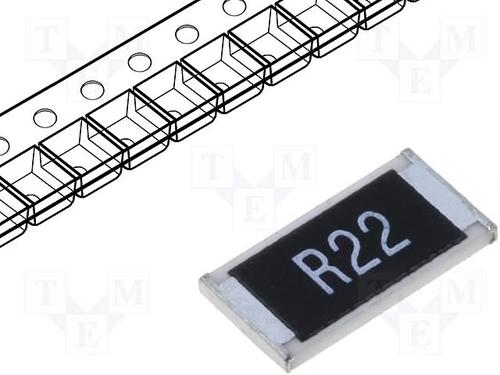

ERJ1TRQFR22U

PANASONIC ELECTRONIC COMPONENTS  ERJ1TRQFR22U  电流感应电阻器, 表面安装, AEC-Q200 ERJ系列, 0.22 ohm, 1 W, ± 1%, 2512 [6432公制]

2512 格式低电阻器 - 1%

ERJ 1TR 厚膜芯片电阻器轻便紧凑。 这些电阻器由三层电极、金属釉厚膜电阻元件构成，非常可靠。

符合 AEC-Q200

电流感应

小尺寸

低电阻值

适用于流动焊接和回流焊接

### 标准

IEC 60115-8, JIS C 5201-8, JEITA RC-2144

欧时:
### 2512 格式低电阻电阻器 - 1%Panasonic ERJ 1TR 厚膜芯片电阻器轻便紧凑。 这些电阻器由三层电极、金属釉厚膜电阻元件构成，非常可靠。符合 AEC-Q200 电流感应 小尺寸 低电阻值 适用于流动焊接和回流焊接 ### 应用这些电流感应电阻器符合 AEC-Q200 标准，可在汽车应用中使用。 ### 标准IEC 60115-8, JIS C 5201-8, JEITA RC-2144### 厚膜 - 2512

e络盟:
电流感应电阻器, 表面安装, 0.22 ohm, ERJ1T 系列, 2512 [6432公制], 1 W, ± 1%, 厚膜

艾睿:
Use this ERJ-1TRQFR22U fixed single surface-mount resistor from Panasonic to obtain a visually clean layout. This durable part has a power rating of 1 W. This product has a resistance value of 220m Ohm. It is also complete with current sensing technology. Its temperature coefficient is ±200 ppm/°C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. It has a tolerance of 1%. This device utilizes thick film technology. This part has an operating temperature of -55 to 125 °C. This product is 6.4 mm long, 0.6 mm tall and 3.2 mm deep.

安富利:

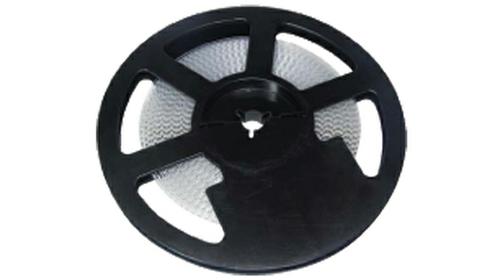

Res Thick Film 2512 0.22 Ohm 1% 1W ±200ppm/°C Molded SMD SMD Embossed Carrier T/R

TME:
Resistor: thick film; SMD; 2512; 220mΩ; 1W; ±1%

Verical:
Res Thick Film 2512 0.22 Ohm 1% 1W ±200ppm/C Molded SMD Automotive T/R

Newark:
# PANASONIC ELECTRONIC COMPONENTS  ERJ1TRQFR22U  SMD Current Sense Resistors, AEC-Q200 ERJ Series, 0.22 ohm, 1 W, - 1%

儒卓力:
**TR2512 0,22R 1% 1W TK200 **
