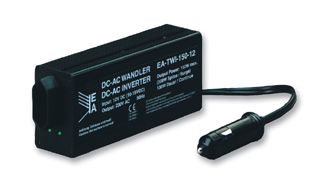

EA ELEKTRO-AUTOMATIK EA-TWI 220-12 DC/ AC逆变器, PWM, 1输出, 15 VDC, 180 VA, 230 V, 158 mm, 70 mm
The is a DC/AC Inverter designed to operate in versatile applications where there is no mains supply available. The units operate with a 12 or 24VDC- source, typically a battery. The AC output voltage 230V 50Hz is available at a 2 or 3 pin socket depending on model to power equipment like TV-receivers as well as some industrial equipment. The Inverters provide a modified sine wave output voltage PWM. The series EA-TWI is not galvanically isolated. The series EA-SRX-PB provides for galvanic insulation. The units are equipped with extensive protection facilities such as overload/overheat and battery protection. Units up to 300VA are equipped with 2-pole EURO flat sockets, unit with 600 to 1000VA with German Schuko-Sockets.
- .
- Output modified sine wave PWM
- .
- Input and output isolated SRX-PB
- .
- High efficiency
- .
- Input under - and overvoltage protection with alarm
- .
- Overtemperature and overload protection, short circuit protected
- .
- 80 to 1000VA Output power
