ERJ8ENF3243V

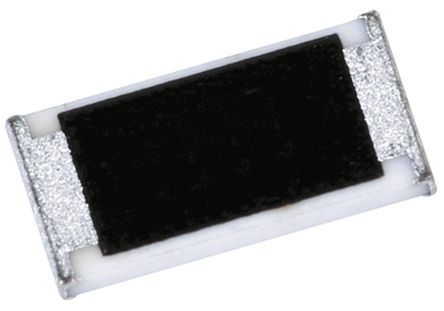

PANASONIC ELECTRONIC COMPONENTS  ERJ8ENF3243V  片式电阻器, 表面贴装, 厚膜, AEC-Q200 ERJ系列, 324 kohm, 200 V, 1206 [3216公制], 250 mW, ± 1%

1206 格式器，ERJ8EN 系列 - 1%（5kΩ 至 2.2MkΩ）

的 ERJ8EN 精密电阻器由三层电极和一个金属上釉电阻性厚膜元件构成。 这些片式电阻器采用轻型、紧凑型结构，是高可靠性的解决方案，具有低电阻容差。 ERJ8EN 片式电阻器同时兼容回流焊接和流动焊接，还可在自动贴片机中使用。

### 产品应用信息

这些片式电阻器具有 AEC-Q200 资格，适用于汽车应用。

### 标准

IEC 60115-8，JIS C 5201-8，EIAJ RC-2134B

欧时:
Panasonic ERJ 系列 0.25W 324kΩ 精密厚膜SMD 电阻器 ERJ8ENF3243V, ±1%, ±100ppm/°C, 1206 封装

e络盟:
SMD片式电阻, 厚膜, 1206 [3216公制], 324 kohm, ERJ8E 系列, 200 V, 厚膜, 250 mW

艾睿:
Use this ERJ-8ENF3243V fixed single surface-mount resistor from Panasonic to obtain a visually clean layout. This product has a resistance value of 324K Ohm. This dependable part has a power rating of 0.25 1/4 W. Its temperature coefficient is ±100 ppm/°C. Tape and reel packaging will encase this product during shipment, in order to ensure safe delivery and enable quick mounting of components. This product is 3.2 mm long, 0.6 mm tall and 1.6 mm deep. This part has an operating temperature of -55 to 155 °C. This device is made with thick film technology. It has a tolerance of 1%.

安富利:
Res Thick Film 1206 324K Ohm 1% 1/4W ±100ppm/°C Molded SMD SMD Punched Carrier T/R
