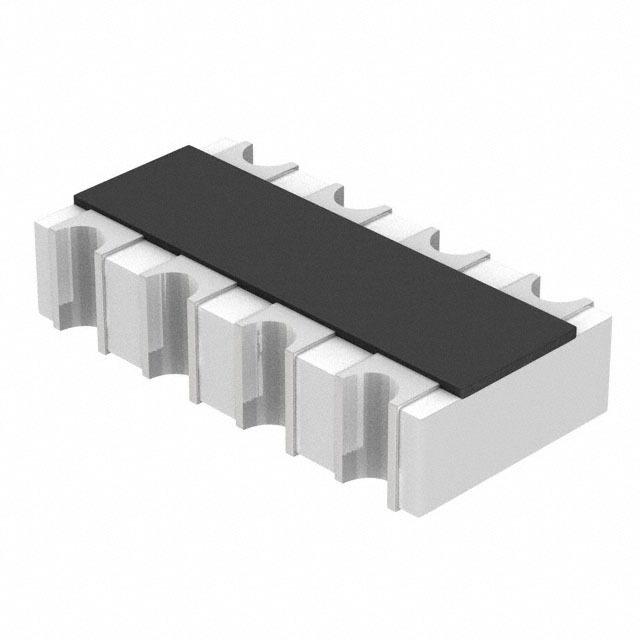

Res Thick Film Array 20KΩ 5% ±200ppm/℃ ISOL Molded 8Pin 08044 X 0402 Concave SMD T/R
20k 欧姆 ±5% 31mW 每元件功率 隔离 4 器网络，阵列 ±200ppm/°C 0804，凹面，长边端子
立创商城:
20kΩ ±5%
得捷:
RES ARRAY 4 RES 20K OHM 0804
艾睿:
Use this EXB-N8V203JX resistor array from Panasonic to conserve space by packing multiple resistors into one IC chip. Its temperature coefficient is ±200 ppm/°C. This dependable part has a power rating per resistor of 0.031 1/32 W. This product&s;s 4 resistors have a value of 20K Ohm. It has 8 terminals. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This product is 2 mm long, 0.45 mm tall and 1 mm deep. The EXB-N8V203JX part has a concave termination style. It has a tolerance of 5%. This part has an operating temperature of -55 to 125 °C. This product&s;s terminal pitch is 0.5 mm. This device utilizes thick film technology.
Verical:
Res Thick Film Array 20K Ohm 5% ±200ppm/C ISOL 8-Pin 08044 X 0402 Concave SMD T/R
Electro Sonic:
Res Thick Film Array 20K Ohm 5% ±200ppm/°C ISOL 8-Pin 08044 X 0402 Concave SMD T/R
