ERJ8ENF1054V

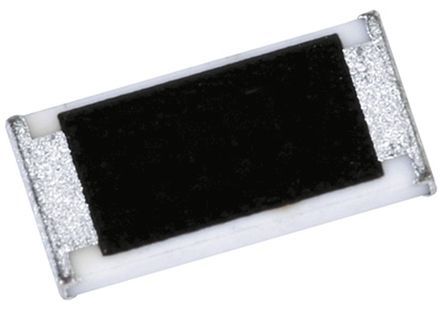

PANASONIC ELECTRONIC COMPONENTS  ERJ8ENF1054V  片式电阻器, 表面贴装, 厚膜, AEC-Q200 ERJ系列, 1.05 Mohm, 200 V, 1206 [3216公制], 250 mW, ± 1%

1206 格式器，ERJ8EN 系列 - 1%（5kΩ 至 2.2MkΩ）

的 ERJ8EN 精密电阻器由三层电极和一个金属上釉电阻性厚膜元件构成。 这些片式电阻器采用轻型、紧凑型结构，是高可靠性的解决方案，具有低电阻容差。 ERJ8EN 片式电阻器同时兼容回流焊接和流动焊接，还可在自动贴片机中使用。

### 产品应用信息

这些片式电阻器具有 AEC-Q200 资格，适用于汽车应用。

### 标准

IEC 60115-8，JIS C 5201-8，EIAJ RC-2134B

欧时:
Panasonic ERJ 系列 0.25W 1.05MΩ 精密厚膜SMD 电阻器 ERJ8ENF1054V, ±1%, ±100ppm/°C, 1206 封装

e络盟:
SMD片式电阻, 厚膜, 1206 [3216公制], 1.05 Mohm, ERJ8E 系列, 200 V, 厚膜, 250 mW

艾睿:
This is a ERJ-8ENF1054V fixed single surface-mount resistor from Panasonic. This product has a resistance value of 1.05M Ohm. This dependable part has a power rating of 0.25 1/4 W. Its temperature coefficient is ±100 ppm/°C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This product is 3.2 mm long, 0.6 mm tall and 1.6 mm deep. It has a tolerance of 1%. This device utilizes thick film technology. This part has an operating temperature of -55 to 155 °C.

安富利:
Res Thick Film 1206 1.05M Ohm 1% 1/4W ±100ppm/°C Molded SMD SMD Punched Carrier T/R
