ERJ-1GEF5233C

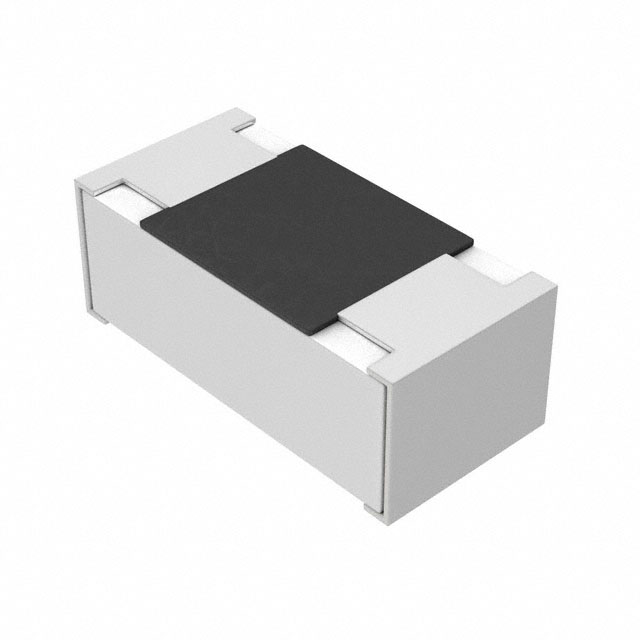

ERJ-1GEF5233C图片1
ERJ-1GEF5233C图片2
ERJ-1GEF5233C图片3
ERJ-1GEF5233C图片4
ERJ-1GEF5233C图片5
ERJ-1GEF5233C图片6
ERJ-1GEF5233C图片7
ERJ-1GEF5233C概述

Res Thick Film 0201 523KΩ 1% 0.05W1/20W ±200ppm/℃ Pad SMD Automotive T/R

523 kOhms ±1% 0.05W, 1/20W Chip Resistor 0201 0603 Metric Thick Film


得捷:
RES SMD 523K OHM 1% 1/20W 0201


艾睿:
This is a ERJ-1GEF5233C fixed single surface-mount resistor from Panasonic. This product has a resistance value of 523K Ohm. This dependable part has a power rating of 0.05 1/20 W. Its temperature coefficient is ±200 ppm/°C. Tape and reel packaging will encase the product during shipment, ensuring safe delivery and enabling quick mounting of components. This device is made with thick film technology. This part has an operating temperature of -55 to 125 °C. It has a tolerance of 1%. This product is 0.6 mm long, 0.23 mm tall and 0.3 mm deep.


Verical:
Res Thick Film 0201 523K Ohm 1% 0.05W1/20W ±200ppm/C Pad SMD Automotive T/R


Electro Sonic:
Res Thick Film 0201 523K Ohm 1% 0.05W1/20W ±200ppm/°C Pad SMD Automotive T/R


ERJ-1GEF5233C中文资料参数规格
技术参数

额定电压DC 15.0 V

容差 ±1 %

额定功率 0.05 W

电阻 523 KΩ

阻值偏差 ±1 %

工作温度Max 125 ℃

工作温度Min -55 ℃

封装参数

安装方式 Surface Mount

封装 0201

外形尺寸

长度 600 µm

宽度 300 µm

高度 0.23 mm

封装 0201

物理参数

工作温度 -55℃ ~ 125℃

温度系数 ±200 ppm/℃

其他

产品生命周期 Unknown

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

ERJ-1GEF5233C引脚图与封装图
ERJ-1GEF5233C引脚图
ERJ-1GEF5233C封装图
ERJ-1GEF5233C封装焊盘图
在线购买ERJ-1GEF5233C
型号: ERJ-1GEF5233C
制造商: Panasonic 松下
描述:Res Thick Film 0201 523KΩ 1% 0.05W1/20W ±200ppm/℃ Pad SMD Automotive T/R
替代型号ERJ-1GEF5233C
型号/品牌 代替类型 替代型号对比

ERJ-1GEF5233C

Panasonic 松下

当前型号

当前型号

ERJ-1GNF5233C

松下

完全替代

ERJ-1GEF5233C和ERJ-1GNF5233C的区别
