EEE-1VA101UP

PANASONIC ELECTRONIC COMPONENTS  EEE-1VA101UP  铝电解电容, 100UF, 35V, 20%, SMD, 整卷 新

铝电解器 径向，Can - SMD - 85°C 时为 2000 小时

得捷:
CAP ALUM 100UF 20% 35V SMD

e络盟:
PANASONIC ELECTRONIC COMPONENTS  EEE-1VA101UP  铝电解电容, 100UF, 35V, 20%, SMD, 整卷

艾睿:

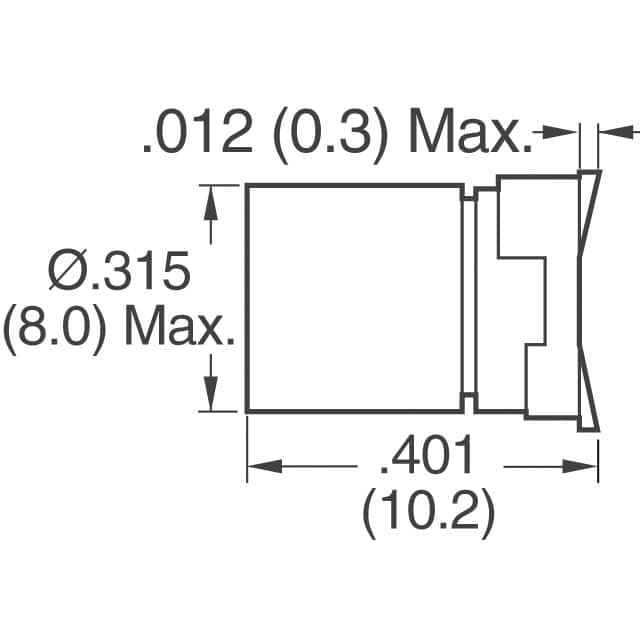

Using the aluminum anode based electrolytic EEE-1VA101UP electrolytic capacitor, developed by Panasonic, you can filter out lower signal frequencies. It can withstand a voltage of 35 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 85 °C. Its leakage current is 35@2Min μA. It has a tolerance of 20%. This product is 10.2 mm tall with a diameter of 8 mm. Its capacitance value is 100uF.

Verical:
Cap Aluminum Lytic 100uF 35V 20% 8 X 10.2mm SMD 140mA 2000h 85C Automotive T/R

Newark:
# PANASONIC ELECTRONIC COMPONENTS  EEE-1VA101UP  SMD Aluminum Electrolytic Capacitor, Radial Can - SMD, 100 µF, 35 V, S Series

MASTER:
Electrolytic Aluminum Capacitor - 100 µF - 35 V - 20% - 8 X 10.2mm - Surface mount - 140 mA - 2000h - 85°C.

Online Components:
Cap Aluminum Lytic 100uF 35V 20% 8 X 10.2mm SMD 140mA 2000h 85°C Automotive T/R

Electro Sonic:
Electrolytic Aluminum Capacitor - 100 µF - 35 V - 20% - 8 X 10.2mm - Surface mount - 140 ...
