EEU-FR1V681L

PANASONIC ELECTRONIC COMPONENTS  EEU-FR1V681L  铝电解电容, 680UF,

Cap Aluminum Lytic 680uF 35V 20% 10 X 25mm Radial 5mm 2470mA 10000h 105°C Bulk

e络盟:
PANASONIC ELECTRONIC COMPONENTS  EEU-FR1V681L  铝电解电容, 680UF,

艾睿:

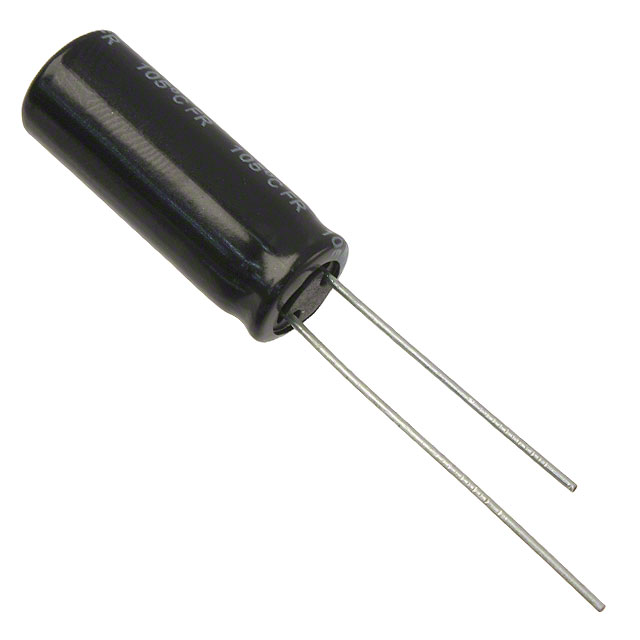

This electrolytic EEU-FR1V681L aluminum capacitor from Panasonic has an anode consisting of pure aluminum foil and is used to filter lower frequencies. It can withstand a voltage of 35 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. Its capacitance value is 680uF. The EEU-FR1V681L aluminum electrolytic capacitor has a radial termination style. It has a tolerance of 20%. This product is 25 mm tall with a diameter of 10 mm. Its leakage current is 238@2Min μA.

Newark:
# PANASONIC ELECTRONIC COMPONENTS  EEU-FR1V681L  Electrolytic Capacitor, 680 µF, 35 V, FR Series, ± 20%, Radial Leaded, 10 mm

MASTER:
Cap Aluminum Lytic 680uF 35V 20% 10 X 25mm Radial 5mm 2470mA 10000h 105°C Bulk

Online Components:
Cap Aluminum Lytic 680uF 35V 20% 10 X 25mm Radial 5mm 2470mA 10000h 105°C Bulk

Electro Sonic:
Cap Aluminum Lytic 680uF 35V 20% 10 X 25mm Radial 5mm 2470mA 10000h 105°C Bulk
