ECS-162.57-20-33-TR参数规格_中文资料_数据手册PDF

ECS-162.57-20-33-TR概述

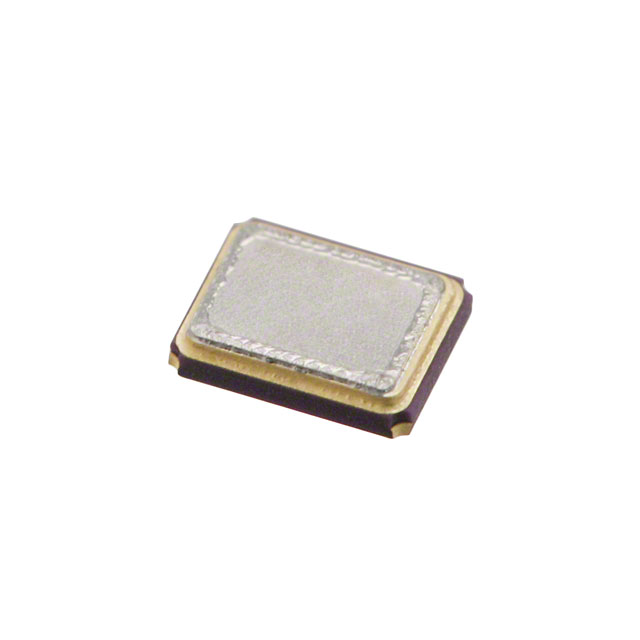

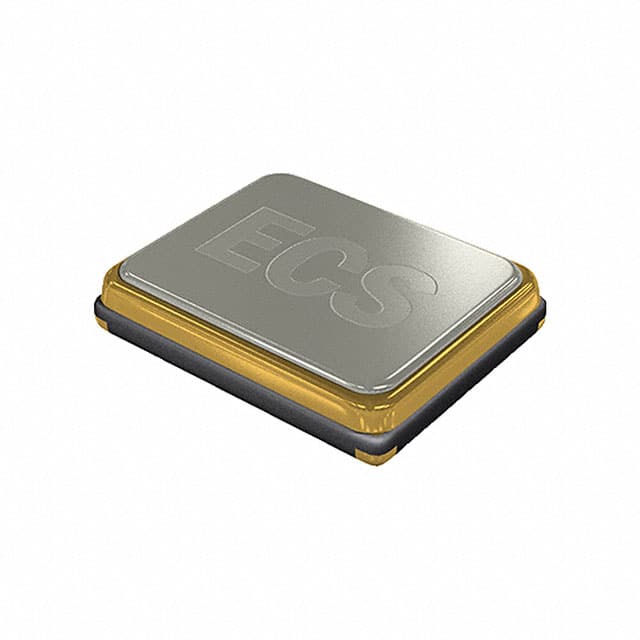

Crystals CRYSTAL 16.257MHz 20pF SMD,ECX-32, 50ppm, 50ppm,20pF,80Ω,Fundamental,-20 C 70 C,4-SMD, No Lead DFN, LCC,0.126" L x 0.098" W 3.2mm x 2.5mm,0.031" 0.8mm

16.257MHz ±50ppm Crystal 20pF 80 Ohms 4-SMD, No Lead

立创商城:
16.257MHz ±50ppm 20pF

得捷:
CRYSTAL 16.2570MHZ 20PF SMD

贸泽:
Crystals CRYSTAL 16.2570MHZ 20PF SMD,ECX-32, 50ppm, 50ppm,20pF,80 Ohm,Fundamental,-20 C 70 C,4-SMD, No Lead DFN, LCC,0.126" L x 0.098" W 3.20mm x 2.50mm,0.031" 0.80mm

艾睿:
Crystal 16.257MHz ±50ppm Tol ±50ppm Stability 20pF FUND 80Ohm 4-Pin Mini-CSMD T/R

ECS-162.57-20-33-TR中文资料参数规格

技术参数

频率 16.257 MHz

频率稳定度 ±50 ppm

频率容差 ±50 ppm

等效串联电阻ESR 80 Ω

负载电容 20 pF

工作温度Max 70 ℃

工作温度Min -20 ℃

封装参数

安装方式 Surface Mount

引脚数 4

封装 SMD-4

外形尺寸

封装 SMD-4

物理参数

工作温度 -20℃ ~ 70℃

其他

产品生命周期 Active

包装方式 Tape & Reel TR

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买ECS-162.57-20-33-TR

型号： ECS-162.57-20-33-TR

制造商： ECS

描述：Crystals CRYSTAL 16.257MHz 20pF SMD,ECX-32, 50ppm, 50ppm,20pF,80Ω,Fundamental,-20 C 70 C,4-SMD, No Lead DFN, LCC,0.126" L x 0.098" W 3.2mm x 2.5mm,0.031" 0.8mm

立即咨询

替代型号ECS-162.57-20-33-TR

型号/品牌	代替类型	替代型号对比
ECS-162.57-20-33-TR ECS	当前型号	当前型号
ECS-162.57-20-33-CKM-TR ECS	类似代替	ECS-162.57-20-33-TR和ECS-162.57-20-33-CKM-TR的区别

型号/品牌

代替类型

替代型号对比

ECS-162.57-20-33-TR

ECS

当前型号

ECS-162.57-20-33-CKM-TR

ECS

类似代替

ECS-162.57-20-33-TR和ECS-162.57-20-33-CKM-TR的区别
