EEUEE2D331

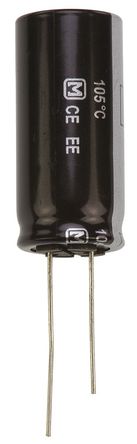

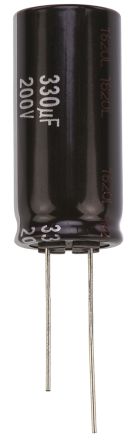

PANASONIC ELECTRONIC COMPONENTS  EEUEE2D331  铝电解电容, EE系列, 330 µF, ± 20%, 200 V, 18 mm, 径向引线

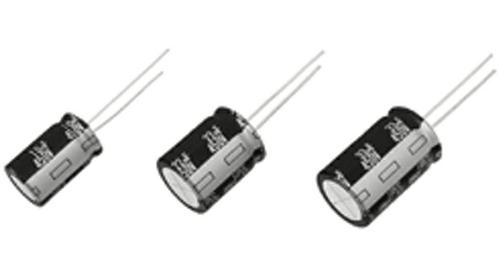

EE 系列

EE 系列 A 型电解器的耐受性可达 8000 至 10000 小时（取决于盒体尺寸）。 与 Panasonic ED 系列相比，这些径向电容器可在高频率下提供高出 40% 的波纹电流。

高波纹电流

极佳的耐受性

低阻抗

欧时:
Panasonic 铝电解电容器 EE RADIAL 系列 200V dc 330μF 通孔 EEUEE2D331, ±20%容差, 最高+105°C

艾睿:

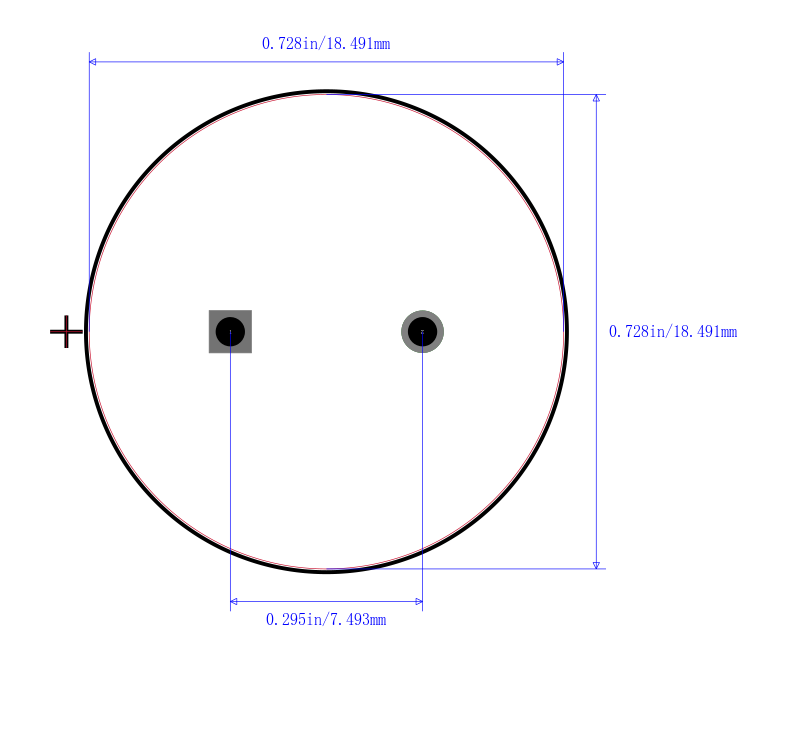

Manufactured from Panasonic, this electrolytic EEU-EE2D331 aluminum capacitor is made from aluminum foil anode and is ideal for filtering out low frequencies. It can withstand a voltage of 200 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its capacitance value is 330uF. This product is 40 mm tall with a diameter of 18 mm. This part has a lead diameter of 0.8 mm and a pitch of 7.5 mm. It has a tolerance of 20%. The EEU-EE2D331 aluminum electrolytic capacitor has a radial termination style. Its leakage current is 406@2Min μA.

Allied Electronics:
Capacitor; Aluminum Electrolytic; Capacitor Radial EE 330uF 200V Hi-Ripple

安富利:
Cap Aluminum 330uF 200V 20% 18 X 40mm Radial 7.5mm 3120mA 10000h 105°C Bulk
