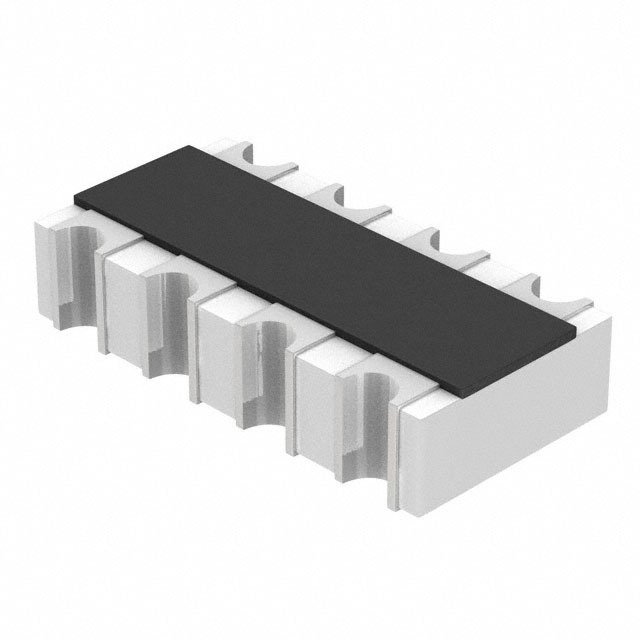

EXBN8V104JX

PANASONIC ELECTRONIC COMPONENTS  EXBN8V104JX  电阻阵列, 凹式端子, 0402X4, 100K 5%

The EXBN8 series are isolated thick film chip resistor networks with concave termination. The Resistance range includes E24 decade values from 10 ohm to 1Mohm. These integrated discrete resistors can effectively reduce PCB space with high component reliability and are more efficient for pick and place application.

.

EIA 0402 resistor array

.

4 resistors in 2.0mm × 1.0mm size with 8 terminals

.

Power rating is 0.031W/element at 70°C

.

±5% tolerance

.

Meets IEC 60115-9, JIS C 5201-9 and EIAJ RC-2129 standards

.

Jumpers are also available

.

Operating temperature range -55°C to 125°C
