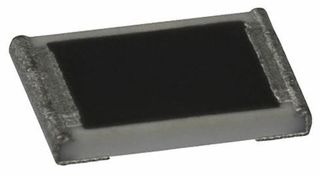

ERJ 系列 0805 330 Ω ±1% 0.125 W ±100 ppm/°C 厚膜 贴片电阻
Res Thick Film 0805 330 Ohm 1% 0.125W1/8W ±100ppm/°C Pad SMD Automotive T/R
得捷:
RES SMD 330 OHM 1% 1/8W 0805
艾睿:
Use this ERJ-6ENF3300V fixed single surface-mount resistor from Panasonic to obtain a visually clean layout. This product has a resistance value of 330 Ohm. This durable part has a power rating of 0.125 1/8 W. Its temperature coefficient is ±100 ppm/°C. In order to ensure safe delivery and enable quick mounting of this component after delivery, it will be encased in tape and reel packaging during shipment. This device is made with thick film technology. It has a tolerance of 1%. This product is 2 mm long, 0.6 mm tall and 1.25 mm deep. This part has an operating temperature of -55 to 155 °C.
Verical:
Res Thick Film 0805 330 Ohm 1% 0.125W1/8W ±100ppm/C Molded SMD Automotive T/R
Newark:
# PANASONIC ELECTRONIC COMPONENTS ERJ-6ENF3300V SMD Chip Resistor, Thick Film, 330 ohm, 150 V, 0805 [2012 Metric], 125 mW, ± 1%, ERJ6E Series
MASTER:
Res Thick Film 0805 330 Ohm 1% 0.125W1/8W ±100ppm/°C Pad SMD Automotive T/R
Online Components:
Res Thick Film 0805 330 Ohm 1% 0.125W1/8W ±100ppm/°C Pad SMD Automotive T/R
Electro Sonic:
Res Thick Film 0805 330 Ohm 1% 0.125W1/8W ±100ppm/°C Pad SMD Automotive T/R
额定电压DC 150 V
容差 ±1 %
额定功率 0.125 W
电阻 330 Ω
阻值偏差 ±1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
额定电压 150 V
安装方式 Surface Mount
引脚数 2
封装公制 2012
封装 0805
长度 2 mm
宽度 1.2 mm
高度 0.6 mm
封装公制 2012
封装 0805
工作温度 -55℃ ~ 155℃
温度系数 ±100 ppm/℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8533210030
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ERJ-6ENF3300V Panasonic 松下 | 当前型号 | 当前型号 |
RC0805FR-07330RL 国巨 | 完全替代 | ERJ-6ENF3300V和RC0805FR-07330RL的区别 |
ERJ-6GEYJ331V 松下 | 类似代替 | ERJ-6ENF3300V和ERJ-6GEYJ331V的区别 |
MCR10EZPF3300 罗姆半导体 | 类似代替 | ERJ-6ENF3300V和MCR10EZPF3300的区别 |
