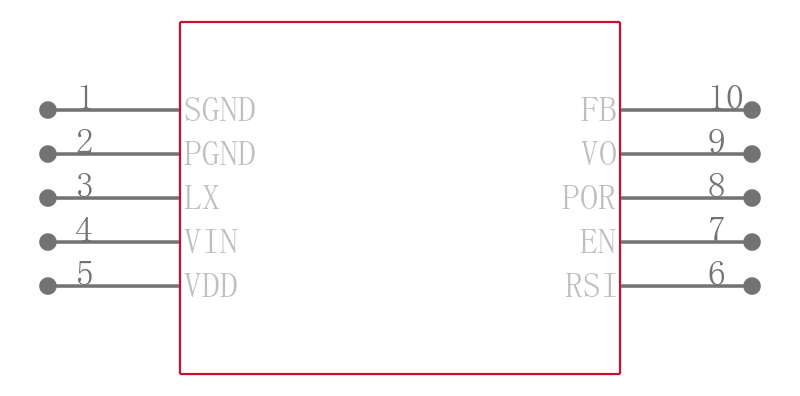

EL7535IY

350mA降压DC-DC

The EL7535 is a synchronous, integrated FET 350mA stepdown regulator in a MSOP10 package. The regulator is internally compensated, which makes it possible to use just five tiny external components to form a complete DC/DC converter. The regulator operates with an input voltage range from 2.5V to 6V, which accommodates supplies of 3.3V, 5V, or a Li-Ion battery source. The output can be externally set from 0.8V to VIN with a resistive divider.

Features

• Extremely small 350mA DC/DC converter

• Max height 1.1mm MSOP10 package

• Possibly uses only five tiny external components with fixed output

• Power-On-Reset output POR

• Internally-compensated voltage mode controller

• Up to 94% efficiency

• <1µA shut-down current

• Overcurrent and over-temperature protection

• Pb-free plus anneal available RoHS compliant

Applications

• PDA and pocket PC computers

• Bar code readers

• Cellular phones

• Portable test equipment

• Li-Ion battery powered devices

• Small form factor SFP modules
