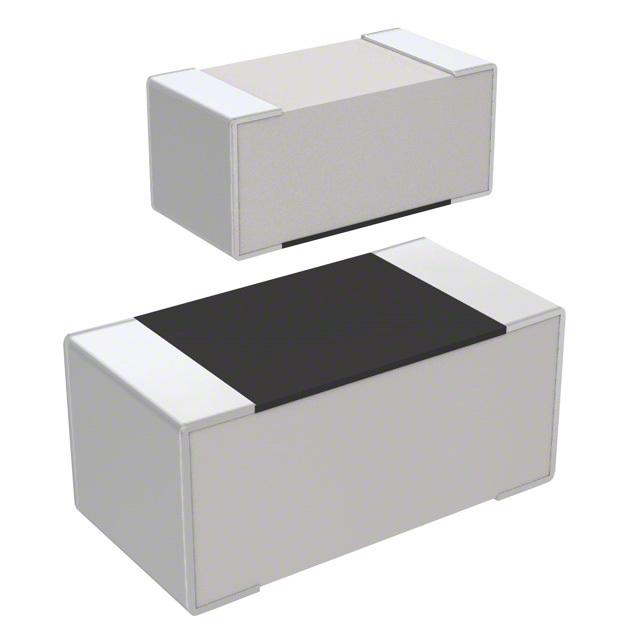

金属膜(薄膜)片式电阻器,高可靠型0402 , 0603 , 0805 , 1206 Metal Film Thin Film Chip Resistors, High Reliability Type 0402, 0603, 0805, 1206
1.8 kOhms ±0.1% 0.1W,1/10W 芯片 0603(1608 公制) 汽车级AEC-Q200 薄膜
得捷:
RES SMD 1.8K OHM 0.1% 1/10W 0603
艾睿:
The ERA-3AEB182V fixed single surface-mount resistor from Panasonic makes it easy to add resistors to your circuit board. This dependable part has a power rating of 0.1 1/10 W. This product has a resistance value of 1.8K Ohm. Its temperature coefficient is ±25 ppm/°C. In order to guarantee safe delivery and allow for quick mounting of this component after delivery, it will be enclosed in tape and reel packaging during shipment. This product is 1.6 mm long, 0.45 mm tall and 0.8 mm deep. This device utilizes thin film technology. This part has an operating temperature of -55 to 155 °C.
Verical:
Res Thin Film 0603 1.8K Ohm 0.1% 0.1W1/10W ±25ppm/C Molded SMD Automotive T/R
Newark:
# PANASONIC ELECTRONIC COMPONENTS ERA-3AEB182V SMD Chip Resistor, Thin Film, 1.8 kohm, 75 V, 0603 [1608 Metric], 100 mW, ± 0.1%, ERA Series
MASTER:
Res Thin Film 0603 1.8K Ohm 0.1% 0.1W1/10W ±25ppm/°C Pad SMD Automotive T/R
Online Components:
Res Thin Film 0603 1.8K Ohm 0.1% 0.1W1/10W ±25ppm/°C Pad SMD Automotive T/R
Electro Sonic:
Res Thin Film 0603 1.8K Ohm 0.1% 0.1W1/10W ±25ppm/°C Pad SMD Automotive T/R
额定电压DC 75.0 V
容差 ±0.1 %
额定功率 0.1 W
电阻 1.8 kΩ
阻值偏差 ±0.1 %
工作温度Max 155 ℃
工作温度Min -55 ℃
额定电压 75 V
安装方式 Surface Mount
引脚数 2
封装公制 1608
封装 0603

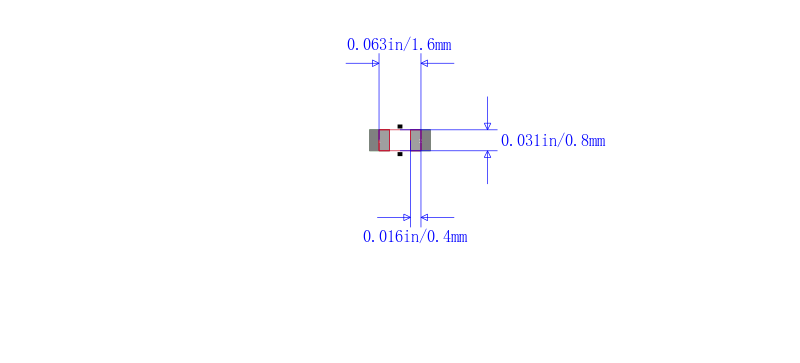

长度 1.60 mm
宽度 800 µm
高度 0.45 mm
封装公制 1608
封装 0603
工作温度 -55℃ ~ 155℃
温度系数 ±25 ppm/℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
HTS代码 8533210040
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ERA-3AEB182V Panasonic 松下 | 当前型号 | 当前型号 |
ERA-3APB182V 松下 | 完全替代 | ERA-3AEB182V和ERA-3APB182V的区别 |
ERA-3YEB182V 松下 | 类似代替 | ERA-3AEB182V和ERA-3YEB182V的区别 |
ERA-3ARB182V 松下 | 类似代替 | ERA-3AEB182V和ERA-3ARB182V的区别 |
