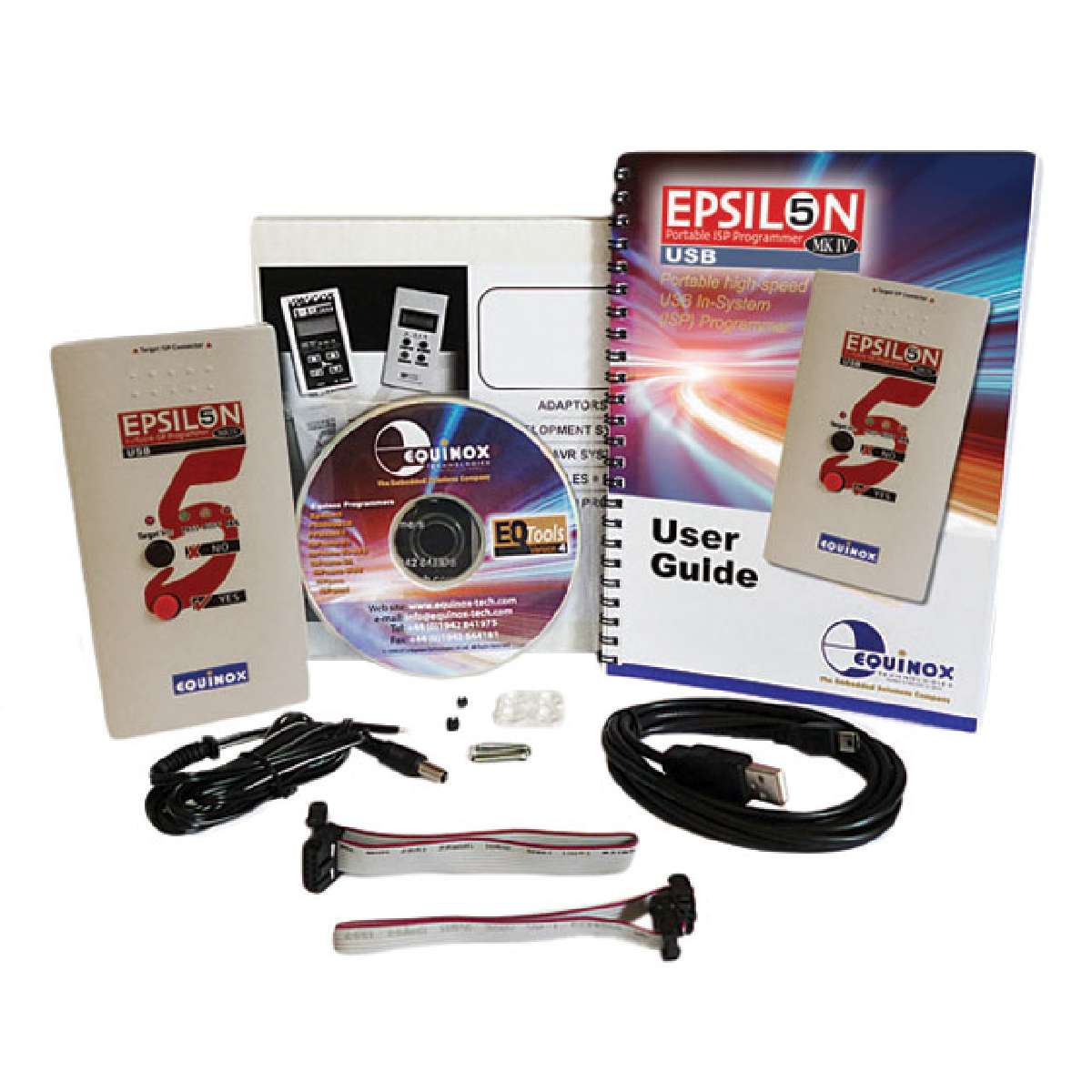

EPSILON5MK4AVR-JTAG

ISP PROGRAMMER AVR JTAG

The is a portable high speed in system ISP programmer for JTAG programming of Atmel AVR microcontroller family via the JTAG interface only with standalone capability and USB/RS232 connectivity. This programmer is a high speed development/field/production programmer supporting in system programming of Atmel AVR microcontrollers. The programmer can be operated under PC control during development and for project configuration/uploading using the EQTools tool suite. For field/production applications the unit is designed to operate in standalone mode. A programming project can be recalled from the on board non volatile flash memory and programmed into a target system by pressing a single key.

.

Supports PC controlled and standalone programming

.

Fastest programming times possible due to on board data, high speed SPI and JTAG port

.

Supports programming of FLASH, EEPROM, FUSE bits, security bits and RC oscillator calibration bytes

.

4Mbits 512Kb of on board non volatile FLASH memory for user project storage standalone mode

.

SCK2 oscillator signal for externally clocking ATmega and ATtiny microcontrollers during programming

.

On board +12V generator for programming ATtiny11/12/15 microcontrollers in high voltage serial mode

.

JTAG Port - FAST ISP using JTAG algorithm license upgrade

.

Controlled/configured by EQTools software

.

This programmer runs at x2 the speed of the older programmer versions

.

The programmer can be powered from the PC USB port during configuration/project uploading
