EEUFC1H471B

FC 系列 330μF - 680μFPanasonic FC 系列 A 型电解电容器提供高耐受性、低阻抗解决方案。 这些铝电容器耐受性可达 1000 至 5000 小时。符合 AEC-Q200 径向引线型 低等效串联电阻 结构小型 高可靠性 低阻抗 高波纹电流 ### 应用Panasonic FC A 型电解电容器符合 AEC-Q200 规格，适用于汽车应用。 高可靠性还使这些电解质电容器特别适用于工业仪器应用。 ### 径向 105°C

FC 系列 330μF - 680μF

FC 系列 A 型电解器提供高耐受性、低阻抗解决方案。 这些铝电容器耐受性可达 1000 至 5000 小时。

符合 AEC-Q200

径向引线型

低等效串联电阻

结构小型

高可靠性

低阻抗

高波纹电流

欧时:

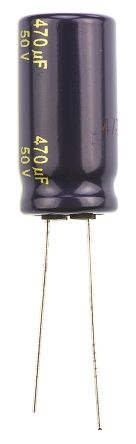

Panasonic 铝电解电容器 FC RADIAL 系列 50V dc 470μF 通孔 EEUFC1H471B, ±20%容差, 最高+105°C

艾睿:

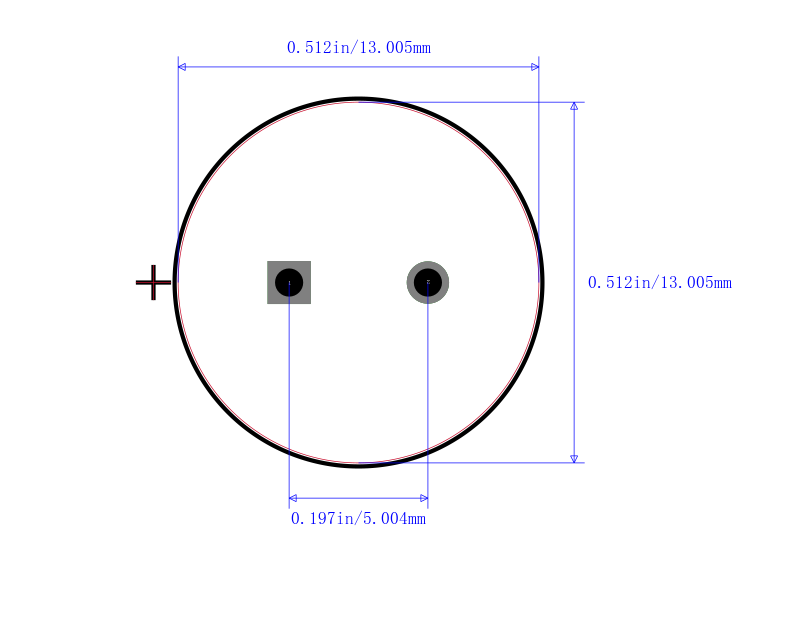

The pure aluminum anode on the electrolytic EEU-FC1H471B electrolytic capacitor, designed from Panasonic, is the solution to your signal filtering needs. It can withstand a voltage of 50 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its leakage current is 235@2Min μA. The EEU-FC1H471B aluminum electrolytic capacitor has a radial termination style. It has a tolerance of 20%. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. This product is 25 mm tall with a diameter of 12.5 mm. Its capacitance value is 470uF.

安富利:
Cap Aluminum 470uF 50V 20% 12.5 X 25mm Radial 5mm 1832mA 5000 hr 105°C Ammo Pack

Chip1Stop:
Cap Aluminum Lytic 470uF 50V 20% 12.5 X 25mm Radial 5mm 1832mA 5000h 105ÂÂ℃ Ammo Pack

TME:
Capacitor: electrolytic; low impedance; THT; 470uF; 50VDC; ±20%

Verical:
Cap 470uF 50VDC 20% 12.5 X 25mm RDL 5mm 1832mA 5000 hr Ammo Pack

Newark:
# PANASONIC ELECTRONIC COMPONENTS  EEUFC1H471B  Aluminium Electrolytic Capacitor, AEC-Q200 FC Series, 470 - F, - 20%, 50 V, 12.5 mm
