EEEFK0J221P

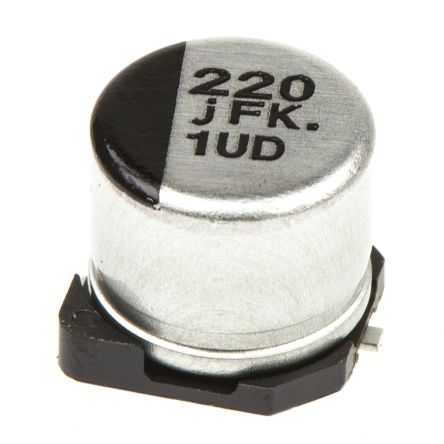

PANASONIC ELECTRONIC COMPONENTS  EEEFK0J221P  铝电解电容, 表面贴装, AEC-Q200 FK系列, 220 µF, 6.3 V, Radial Can - SMD, 6.3 mm

FK 系列卷筒

以满卷形式提供， 的 FK 系列铝电解 器是 FC 系列的微型型号，相比 FC 系列降低了 40-60% 的阻抗值。 这些电解电容器具有长达 5000 小时的长使用寿命，且符合 AEC-Q200 标准，适用于汽车应用。 带有 A

.

后缀的部件号可耐受较高的回流温度，用于延长使用寿命。

立创商城:
220uF 6.3V

欧时:
Panasonic 铝电解电容器 FK SMD 系列 6.3V dc 220μF 表面安装器件 EEEFK0J221P, ±20%容差, 最高+105°C

e络盟:
铝电解电容, 表面贴装, Radial Can - SMD, 220 µF, 6.3 V, FK 系列, 2000 hours @ 105°C

艾睿:
Using this electrolytic EEE-FK0J221P aluminum capacitor from Panasonic in your electronic circuit you&s;ll be able to generate high heat for a given current level due to its relatively high equivalent series resistance. It can withstand a voltage of 6.3 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its leakage current is 13.86@2Min μA. Its capacitance value is 220uF. This product is 5.8 mm tall with a diameter of 6.3 mm. It has a tolerance of 20%.

安富利:
Cap Aluminum 220uF 6.3V 20% 6.3 X 5.8mm SMD 240mA 2000 hr 105°C T/R

TME:
Capacitor: electrolytic; low impedance; SMD; 220uF; 6.3VDC; ±20%

Newark:
# PANASONIC ELECTRONIC COMPONENTS  EEEFK0J221P  CAP, ALU ELEC, 220UF, 6.3V, SMD

儒卓力:
**V-FK 220uF 6,3V 20% 6x6 **
