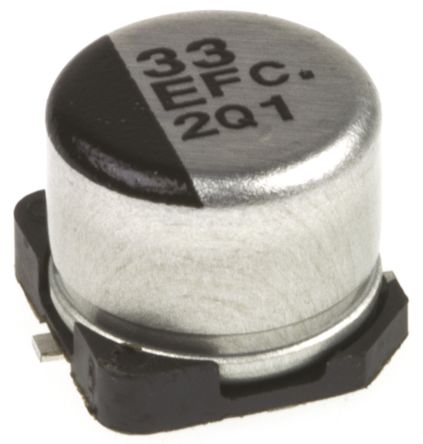

EEEFC1E330P

PANASONIC ELECTRONIC COMPONENTS  EEEFC1E330P  铝电解电容, 表面贴装, FC系列, 33 µF, 25 V, Radial Can - SMD, 6.3 mm

FC 系列卷筒

.

后缀的部件号可耐受较高的回流温度，用于延长使用寿命

欧时:
Panasonic 铝电解电容器 FC SMD 系列 25V dc 33μF 表面安装器件 EEEFC1E330P, ±20%容差, 最高+105°C

立创商城:
33uF ±20% 25V 停产

e络盟:
铝电解电容, 表面贴装, Radial Can - SMD, 33 µF, 25 V, FC 系列, 1000 hours @ 105°C

艾睿:
This electrolytic EEE-FC1E330P aluminum capacitor from Panasonic combines low cost, high capacitance and high energy density all in one tiny component. It can withstand a voltage of 25 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This product is 5.4 mm tall with a diameter of 6.3 mm. Its capacitance value is 33uF. Its leakage current is 8.25@2Min μA. It has a tolerance of 20%.

Allied Electronics:
Capacitor; Aluminum Electrolytic; 25V 33 uF D Case Fc SMT

安富利:
Cap Aluminum 33uF 25V 20% 6.3 X 5.4mm SMD 140mA 1000 hr 105°C Embossed T/R

Chip1Stop:
Cap Aluminum 33uF 25VDC 20% 6.3 X 5.4mm SMD 140mA 1000 hr Embossed T/R

Verical:
Cap 33uF 25VDC 20% 6.3 X 5.4mm SMD 140mA 1000 hr Embossed T/R
