ERJ8GEYJ474V

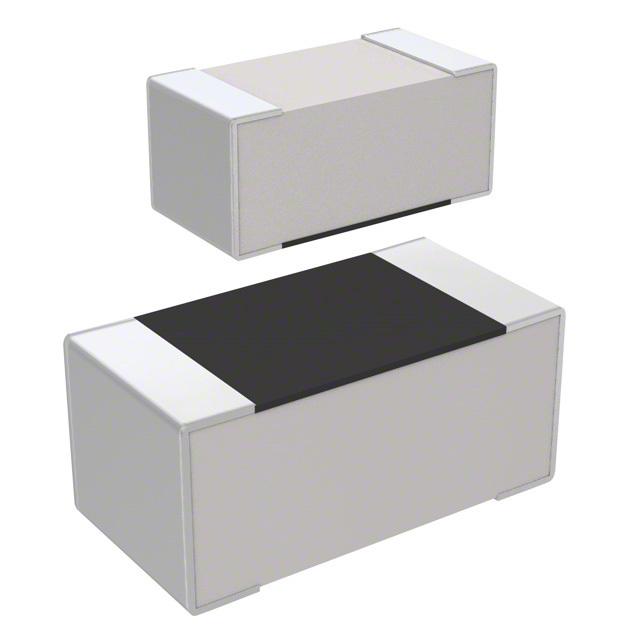

ERJ8GEYJ474V图片1
ERJ8GEYJ474V图片2
ERJ8GEYJ474V概述

SMD片式电阻, 1206 [3216公制], 470 kohm, ERJ8GE Series, 200 V, 厚膜, 250 mW

ERJ Series 1206 470 kOhm ±5% 0.25 W ±200 ppm/°C Metal Glaze Thick Film Resistor


e络盟:
SMD片式电阻, 1206 [3216公制], 470 kohm, ERJ8GE Series, 200 V, 厚膜, 250 mW


艾睿:
Use this ERJ-8GEYJ474V fixed single surface-mount resistor from Panasonic to obtain a visually clean layout. This product has a resistance value of 470K Ohm. This dependable part has a power rating of 0.25 1/4 W. Its temperature coefficient is ±200 ppm/°C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. This part has an operating temperature of -55 to 155 °C. This product is 3.2 mm long, 0.6 mm tall and 1.6 mm deep. This device is made with thick film technology. It has a tolerance of 5%.


安富利:
Res Thick Film 1206 470K Ohm 5% 1/4W ±200ppm/°C Molded SMD SMD Punched Carrier T/R


Verical:
Res Thick Film 1206 470K Ohm 5% 1/4W ±200ppm/°C SMD Punched Carrier T/R


ERJ8GEYJ474V中文资料参数规格
技术参数

额定电压DC 200 V

额定功率 0.25 W

产品系列 ERJ8G

电阻 470 kΩ

阻值偏差 ±5 %

工作温度Max 155 ℃

工作温度Min -55 ℃

额定电压 200 V

封装参数

安装方式 Surface Mount

封装公制 3216

封装 1206

外形尺寸

长度 3.20 mm

宽度 1.60 mm

高度 0.6 mm

封装公制 3216

封装 1206

物理参数

工作温度 -55℃ ~ 155℃

温度系数 ±200 ppm/℃

其他

产品生命周期 Unknown

包装方式 Tape & Reel TR

最小包装 5000

符合标准

RoHS标准

含铅标准 Contains Lead

数据手册

在线购买ERJ8GEYJ474V
型号: ERJ8GEYJ474V
制造商: Panasonic 松下
描述:SMD片式电阻, 1206 [3216公制], 470 kohm, ERJ8GE Series, 200 V, 厚膜, 250 mW
替代型号ERJ8GEYJ474V
型号/品牌 代替类型 替代型号对比

ERJ8GEYJ474V

Panasonic 松下

当前型号

当前型号

RC1206JR-07470KL

国巨

功能相似

ERJ8GEYJ474V和RC1206JR-07470KL的区别

NRC12J474TRF

NIC

功能相似

ERJ8GEYJ474V和NRC12J474TRF的区别

RK73B2BTTD474J

KOA Speer

功能相似

ERJ8GEYJ474V和RK73B2BTTD474J的区别
