ERZV20D471

PANASONIC ELECTRONIC COMPONENTS  ERZV20D471  TVS压敏电阻, V系列, 300 V, 385 V, 775 V, 片状 20mm, 高涌流抑制

V Series Ř20 mm 385 V 10 kA 900 pF Straight Radial Transient Surge Absorber

欧时:
Panasonic ZNR 系列 900pF 100A 775V 浪涌吸收器 ERZV20D471, 21.5 Dia. x 6.6mm

e络盟:
TVS压敏电阻, 300 V, 385 V, 775 V, 片状 20mm, 氧化锌非线性电阻 ZNR

艾睿:

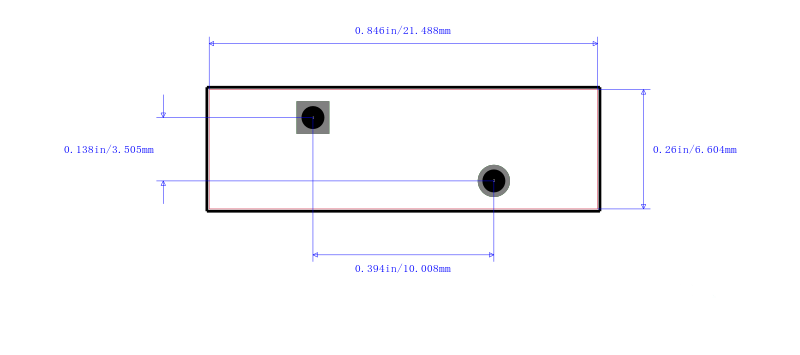

Similar to a diode this ERZ-V20D471 MOV manufactured from Panasonic is a nonlinear component. This device&s;s clamping current is 100 A and clamping voltage is 775 V. Its maximum surge current is 10000 A. This part has a pitch of 10 mm. This voltage dependent resistor has an operating temperature of -40 to 85 °C. This product comes packaged in bulk, so the parts will be stored loosely. The maximum AC voltage rating is 300 VAC and the maximum DC voltage rating is 385 VDC. This varistor has a voltage of 470 V. This product is 24.5 mm tall and 6.6 mm deep with a diameter of 21.5 mm. Its capacitance value is 900pF.

安富利:
Var 300VAC 385VDC 10000A 470V Thru-Hole Bulk

Chip1Stop:
Var 300VAC 385VDC 10000A 470V Thru-Hole Bulk

Verical:
Var 300VAC 385VDC 10000A 470V Thru-Hole Bulk
