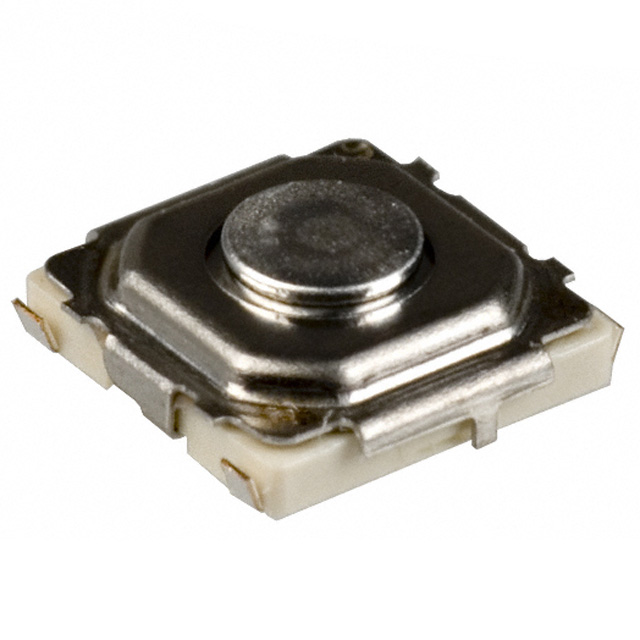

EVQ-PL 系列 4.9 x 4.9 mm 表面贴装 1.6 N 轻触开关
顶部触动 触摸 SPST-NO 表面贴装型
得捷:
SWITCH TACTILE SPST-NO 0.02A 15V
艾睿:
Wow! This light touch EVQ-PLHA15 tactile switch from Panasonic is easy for turning on your circuit with applied force. It has a SPST configuration. This device has a maximum current rating of 0.02 A @ 15VDC. This tactile switch has a minimum operating temperature of -20 °C and a maximum of 70 °C. The EVQ-PLHA15 tactile switch has a j-bend termination style. This round button actuator is 0.3 mm long. The maximum DC voltage rating is 15 VDC. This product is 4.9 mm long, 1.5 mm tall and 4.9 mm deep.
Verical:
Switch Tactile N.O. SPST Round Button J-Bend 0.02A 15VDC 1.6N SMD T/R
Newark:
# PANASONIC ELECTRONIC COMPONENTS EVQ-PLHA15 Tactile Switch, Non Illuminated, 15 V, 20 mA, 1.6 N, Solder
MASTER:
Switch Tactile N.O. SPST Round Button J-Bend 0.02A 15VDC 1.6N SMD T/R
Online Components:
Switch Tactile N.O. SPST Round Button J-Bend 0.02A 15VDC 1.6N SMD T/R
Electro Sonic:
Switch Tactile N.O. SPST Round Button J-Bend 0.02A 15VDC 1.6N SMD T/R
额定电压DC 15 V
接触器类型 Standard
排数 2
方向 Vertical
触点类型 SPST-NO
触点额定电流 20.0 mA
额定电流Max 0.02A @15VDC
工作温度Max 70 ℃
工作温度Min -20 ℃
接触电阻Max 50 mΩ
安装方式 Surface Mount
封装 SMD
长度 4.9 mm
宽度 4.9 mm
高度 1.5 mm
封装 SMD
工作温度 -20℃ ~ 70℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8536509020
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
EVQ-PLHA15 Panasonic 松下 | 当前型号 | 当前型号 |
431183015816 伍尔特 | 功能相似 | EVQ-PLHA15和431183015816的区别 |
MC32840 Multicomp | 功能相似 | EVQ-PLHA15和MC32840的区别 |
431153015826 伍尔特 | 功能相似 | EVQ-PLHA15和431153015826的区别 |
