EPG.1B.308.HLN

LEMO  EPG.1B.308.HLN  圆形连接器, 1B系列, 插座, 8 触点, 母, 焊接, 电路板安装

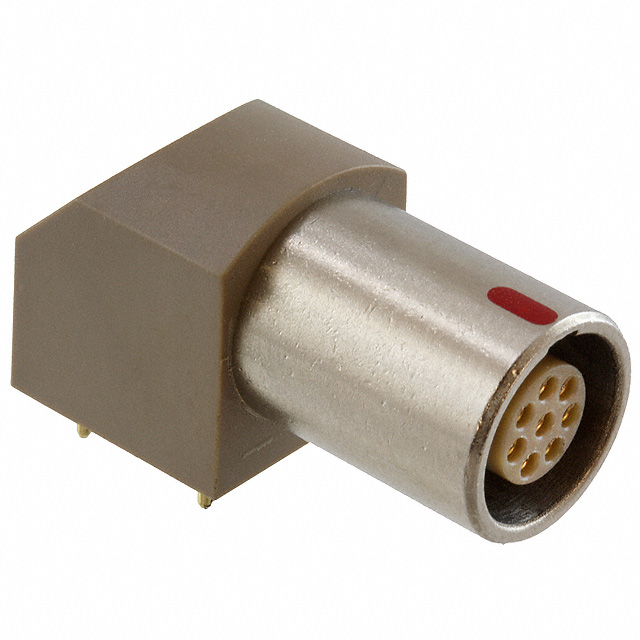

The is a 8-way Circular Connector, 1B series, elbow receptacle for printed circuit boards. Single key, male plug contacts and female socket contacts. Push-pull self-latching system with eight straight or print contacts. Polyphenylene PPS shell and other nickel plated brass parts. It is possible to replace the 4 ground pins by 4 screws. The modular design of the 1B series connectors offers a solution for most applications. The push pull latching mechanism provides a secure connection whilst the density of the contacts provides for considerable panel space savings. Multi key options prevent cross mating of similar connectors within a panel. The ruggedized design combined with precision manufacturing offers excellent durability, reliability and quality.

.

2A Current rating

.

PEEK insulator

.

G Key standard

.

IP50 Protection rating

.

5000 Maximum matings

.

6.1mR Maximum resistance

.

0.7mm Contact diameter

.

360° Screening for full EMC shielding

.

8 Low voltage insert configuration
