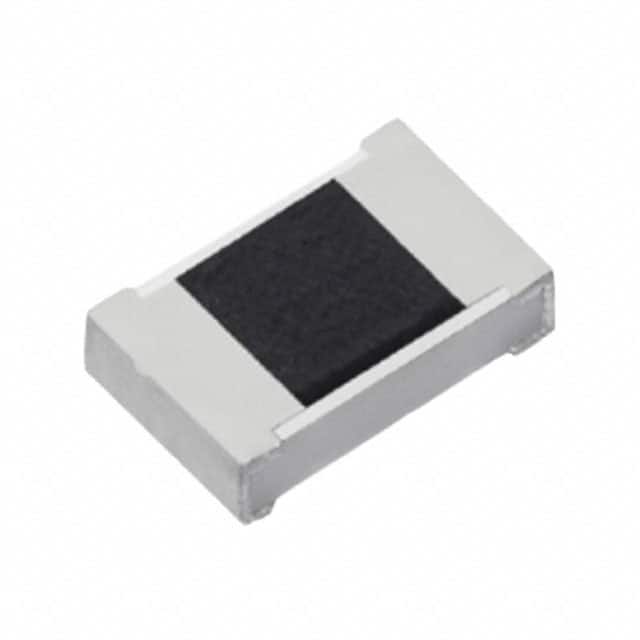

ERJP03F10R0V

PANASONIC ELECTRONIC COMPONENTS  ERJP03F10R0V  片式电阻器, 表面贴装, 厚膜, AEC-Q200 ERJ系列, 10 ohm, 150 V, 0603 [1608公制], 200 mW, ± 1%

0603 格式防浪涌器，ERJP03 系列 - 1% 10Ω → 9.1KΩ

ERJ P03 防浪涌厚膜芯片电阻器由三层电极、金属釉厚膜电阻元件和保护涂层构成。 此结构确保高可靠性，同时支持回流和流动焊接。

符合 AEC-Q200

0.20 W 高功率额定值

反浪涌

与标准膜式电阻器相比，具有卓越的浪涌特性

### 标准

IEC 60115-8, JIS C 5201-8, EIAK RC-2134

欧时:
Panasonic ERJP03 系列 0.2W 10Ω 厚膜 抗浪涌电阻器 ERJP03F10R0V, ±1%, ±200ppm/°C, 0603 封装

立创商城:
10Ω ±1% 200mW

e络盟:
SMD片式电阻, 0603 [1608公制], 10 ohm, ERJP03 Series, 150 V, 厚膜, 200 mW

艾睿:

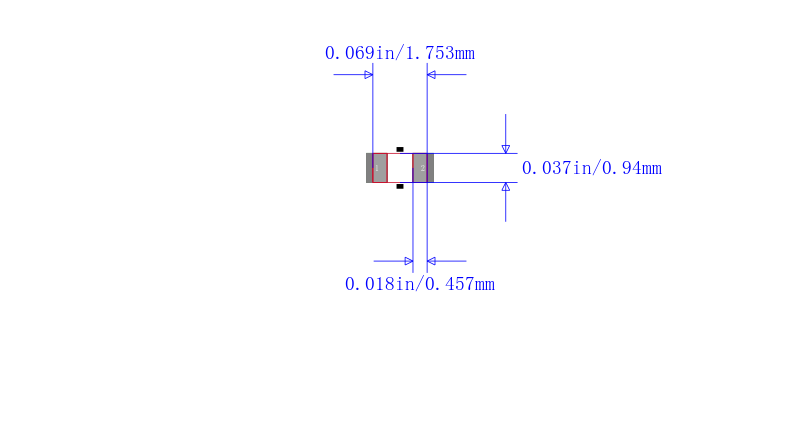

This is a ERJ-P03F10R0V fixed single surface-mount resistor from Panasonic. This part has a power rating of 0.2 1/5 W. This product has a resistance value of 10 Ohm. This resistor is also complete with an anti-surge control valve. Its temperature coefficient is ±200 ppm/°C. This component will be shipped in tape and reel packaging to allow for effective mounting and safe delivery. It has a tolerance of 1%. This device utilizes thick film technology. This part has an operating temperature of -55 to 155 °C. This product is 1.6 mm long, 0.45 mm tall and 0.8 mm deep.

安富利:
Res Thick Film 0603 10 Ohm 1% 1/5W ±200ppm/°C Molded SMD SMD Punched Carrier T/R

Verical:
Res Thick Film 0603 10 Ohm 1% 0.2W1/5W ±200ppm/C Pad SMD Automotive T/R

Newark:
# PANASONIC ELECTRONIC COMPONENTS  ERJP03F10R0V  SMD Chip Resistor, Thick Film, 10 ohm, 150 V, 0603 [1608 Metric], 200 mW, ± 1%, ERJP03 Series
