ERJ1TRQJR51U

PANASONIC ELECTRONIC COMPONENTS  ERJ1TRQJR51U  电流感应电阻器, 表面安装, AEC-Q200 ERJ系列, 0.51 ohm, 1 W, ± 5%, 2512 [6432公制]

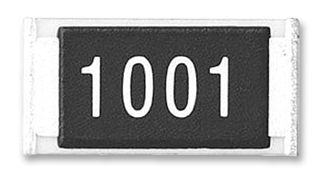

The ERJ 1TR series resistors from are automotive grade, standard current sensing thick film chip resistors with low resistance values. ERJ series resistors have metal glaze thick film resistive element and three layers of electrodes that make them highly reliable.

.

Resistance range includes E24 decade values from 0.22ohm to 9.1ohm

.

EIA 2512 case size

.

Small size, low weight resistors

.

Automotive grade AEC-Q200 qualified

.

Available in ±1%, ±2% and ±5% tolerance

.

Available TCR values are ±100ppm/°C and ±200ppm/°C

.

Operating temperature range of -55°C to 125°C

.

Meets IEC 60115-8, JIS C 5201-8, JEITA RC-2144 standards

.

Suitable for both reflow and flow soldering
