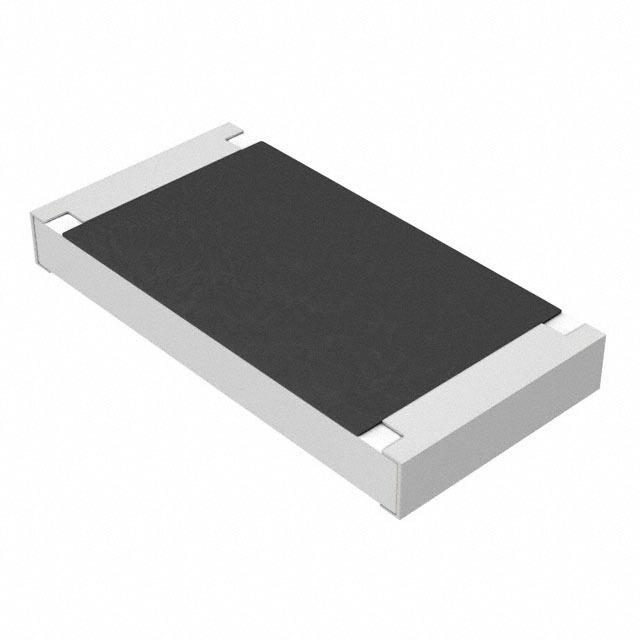

ERJL1DKF10CU

PANASONIC ELECTRONIC COMPONENTS  ERJL1DKF10CU  电流感应电阻器, 表面安装, AEC-Q200 ERJ系列, 0.1 ohm, 500 mW, ± 1%, 2010 [5025公制]

The ERJ L1D series resistors from are automotive grade, low TCR current sensing thick film chip resistors with low resistance values. ERJ series resistors have metal glaze thick film resistive element and three layers of electrodes that make them highly reliable.

.

Resistance values ranges from 40mohm to 100mohm

.

EIA 2010 case size

.

Small size, low weight resistors

.

Automotive grade AEC-Q200 qualified

.

Available in ±1% and ±5% tolerance

.

Available TCR value are ±100ppm/°C and ±300ppm/°C

.

Operating temperature range of -55°C to 125°C

.

Meets IEC 60115-8, JIS C 5201-8, JEITA RC-2144 standards

.

Suitable for both reflow and flow soldering
