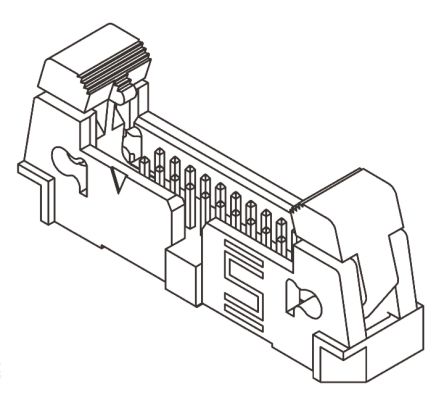

EHT-110-01-S-D

SAMTEC  EHT-110-01-S-D  线至板连接器, EHT系列, 20 触点, 针座, 2 mm, 通孔安装, 2 排

EHT 系列 2.00mm 有罩 IDC 印刷电路板弹出器管座

EHT 系列 2.00mm 节距有罩双排印刷电路板 IDC 管座，带极化凹口，用于精确配接、弹射闩锁和镀金触点。 这些 EHT 系列 2.00mm 印刷电路板弹出器管座提供垂直或直角印刷电路板通孔或印刷电路板 SMT 安装，具有多达 50 个触点。 有关配接，请参见 TCSD 系列 IDC 插座带状电缆组件。

得捷:
CONN HEADER VERT 20POS 2MM

欧时:
### Samtec EHT 系列 2.00mm 有罩 IDC 印刷电路板弹出器管座EHT 系列 2.00mm 节距有罩双排印刷电路板 IDC 管座，带极化凹口，用于精确配接、弹射闩锁和镀金触点。 这些 EHT 系列 2.00mm 印刷电路板弹出器管座提供垂直或直角印刷电路板通孔或印刷电路板 SMT 安装，具有多达 50 个触点。 有关配接连接器，请参见 TCSD 系列 IDC 插座带状电缆组件。### 2.0mm Samtec Range

e络盟:
线至板连接器, 2 mm, 20 触点, 针座, EHT系列, 通孔安装, 2 排

艾睿:
Look no further than the ejector EHT-110-01-S-D header connector from Samtec, a great tool to use when board-to-board interconnects is required. This HDR connector&s;s 20 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a header type gender. Its pitch is 2 mm. This is a 2-row connector. It has a straight body orientation. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. EHT-110-01-S-D is housed in black liquid crystal polymer. This connector has an operating temperature of -55 to 125 °C. This product is 33.79 mm long, 12.19 mm tall and 7.62 mm deep. It uses the solder termination method.

Chip1Stop:
Conn Ejector Header HDR 20 POS 2mm Solder ST Thru-Hole Tube

Verical:
Conn Ejector Header HDR 20 POS 2mm Solder ST Top Entry Thru-Hole Tube

Newark:
# SAMTEC  EHT-110-01-S-D  Wire-To-Board Connector, EHT Series, Through Hole, Header, 20, 2 mm, Gold Plated Contacts
