EHT-110-01-S-D-RA

Conn Ejector Header HDR 20POS 2mm Solder RA Thru-Hole Tube

针座 通孔，直角 20 位置 0.079"（2.00mm）

得捷:
CONN HEADER R/A 20POS 2MM

欧时:
2.00 mm Shrouded IDC Ejector Header

艾睿:

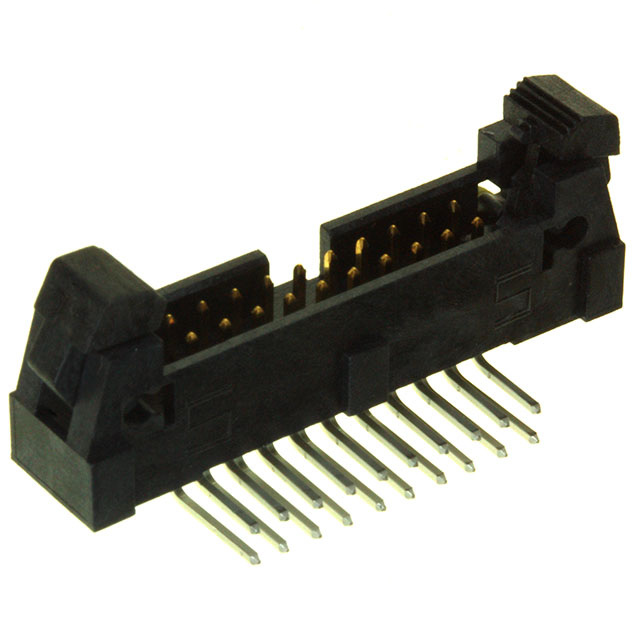

Think of Samtec&s;s ejector EHT-110-01-S-D-RA header connector the next time you&s;re concerned about accidentally shorting out pins on your printed circuit. This HDR connector&s;s 20 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a right angle body orientation. This is a 2-row connector. Its pitch is 2 mm. It has a header type gender. This device has a maximum current rating of 3 A. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. EHT-110-01-S-D-RA is housed in black liquid crystal polymer. This product is 33.79 mm long, 7.62 mm tall and 15.71 mm deep. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C.

安富利:
Conn Ejector Header HDR 20 POS 2mm Solder RA Thru-Hole Tube

Verical:
Conn Ejector Header HDR 20 POS 2mm Solder RA Thru-Hole Tube

Electro Sonic:
2.00 mm Shrouded IDC Ejector Header
