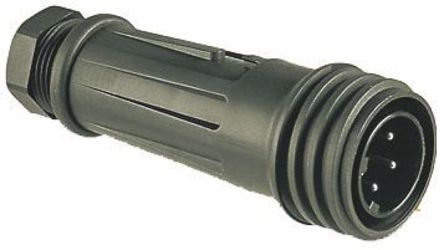

EXP-0921/05/P图片1

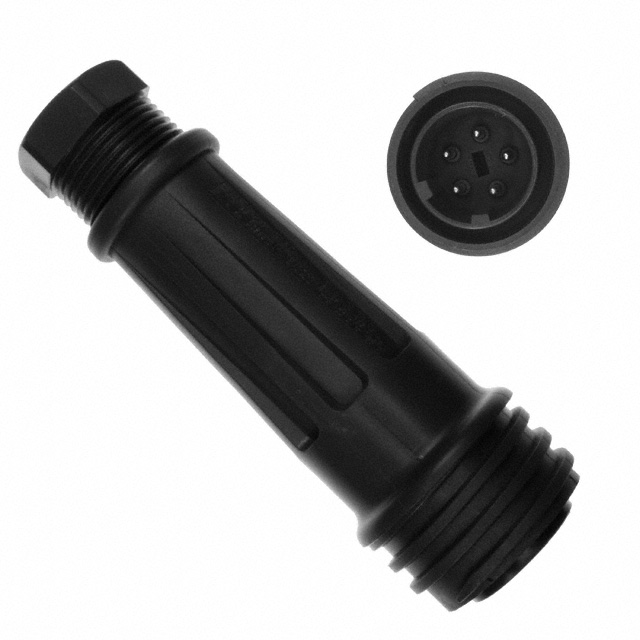

EXP-0921/05/P图片2

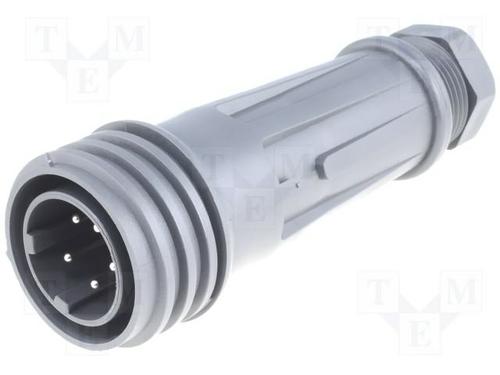

EXP-0921/05/P图片3
EXP-0921/05/P图片4
EXP-0921/05/P图片5
EXP-0921/05/P图片6
EXP-0921/05/P图片7
EXP-0921/05/P图片8
EXP-0921/05/P图片9
EXP-0921/05/P图片10
EXP-0921/05/P概述

EXP-0911 或 EXP-A911 连接器配接 插头或插座型号 EXP-0 系列电缆直径为 13 - 15mm。 验收标准,7 - 13mm,带附加的压盖包 EXP-A 系列 20 - 22mm 电缆直径。 验收标准,14 - 20mm,带附加的压盖包 应力消除夹(仅 EXP-A 系列) ### Bulgin EXP Series EXPloraBulgin Components EXPlora series of connectors for use in hazardous environments. Tested for use in Zone 2 and 22, the connectors are manufactured from UL94V-0 rated polycarbonate material and are environmentally sealed to IP68.The EXPlora range is suited for manufacturers of secondary electrical equipment such as motors, pumps, lighting equipment, and process and control gear for use in factories and plant where hazardous or explosive atmospheres can be caused by flammable gases, mists, vapors or by combustible dusts.Water and dustproof to IP68 when mated Scoop proof contacts Leading earth pin For 3,4,5 & 7 pole versions Easy assembly, no special tools required Field serviceable,screw termination Positive locating keyways, cannot be mis-mated ### 认可ATEX Approval for Zone 2 and Zone 22 Applications

柔性电缆插座

与 EXP-0911 或 EXP-A911 配接

插头或插座型号

EXP-0 系列电缆直径为 13 - 15mm。 验收标准,7 - 13mm,带附加的压盖包

EXP-A 系列 20 - 22mm 电缆直径。 验收标准,14 - 20mm,带附加的压盖包

应力消除夹(仅 EXP-A 系列)

### Bulgin EXP Series EXPlora

EXPlora series of connectors for use in hazardous environments. Tested for use in Zone 2 and 22, the connectors are manufactured from UL94V-0 rated polycarbonate material and are environmentally sealed to IP68.The EXPlora range is suited for manufacturers of secondary electrical equipment such as motors, pumps, lighting equipment, and process and control gear for use in factories and plant where hazardous or explosive atmospheres can be caused by flammable gases, mists, vapors or by combustible dusts.

Water and dustproof to IP68 when mated

Scoop proof contacts

Leading earth pin For 3,4,5 & 7 pole versions

Easy assembly, no special tools required

Field serviceable,screw termination

Positive locating keyways, cannot be mis-mated

### 认可

ATEX Approval for Zone 2 and Zone 22 Applications

EXP-0921/05/P中文资料参数规格
技术参数

触点数 5

极性 Male

触点电镀 Nickel

额定电流 18 A

易燃性等级 UL 94 V-0

针脚数 5

额定电流Max 18 A

工作温度Max 55 ℃

工作温度Min -20 ℃

额定电压 600VAC, 600VDC

封装参数

安装方式 Screw

引脚数 5

物理参数

触点材质 Brass

工作温度 -20℃ ~ 55℃

外壳材质 Polyester

其他

产品生命周期 Active

包装方式 Bulk

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册
