EXP-0931/10/S

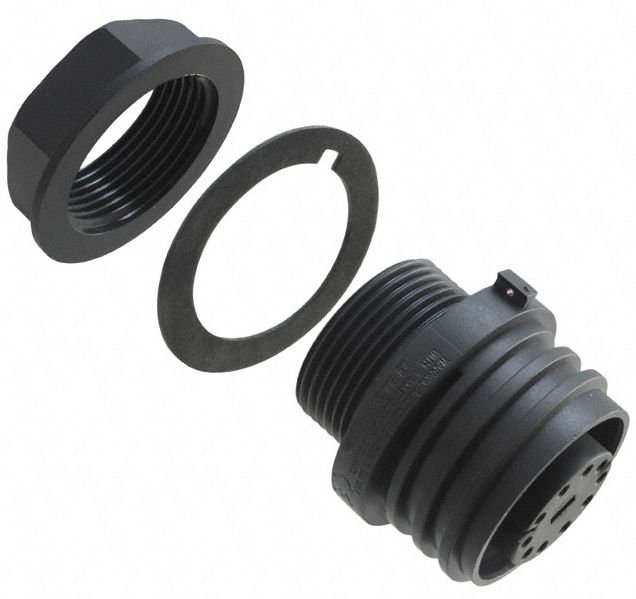

EXP-0931/10/S图片1

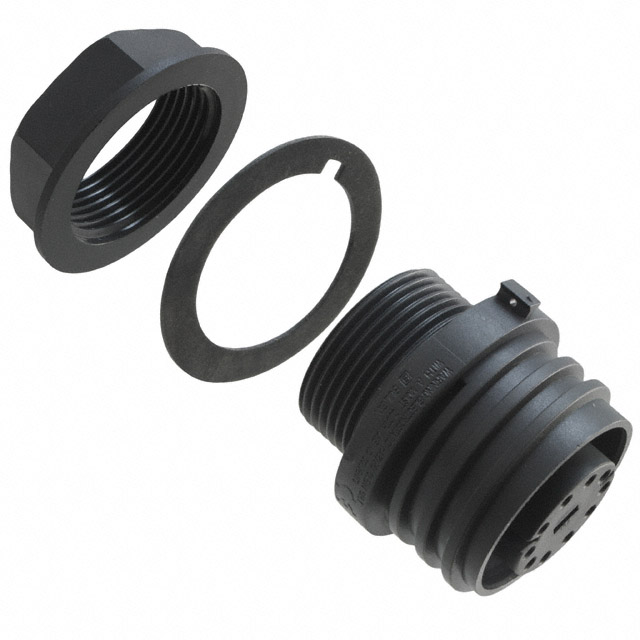

EXP-0931/10/S图片2

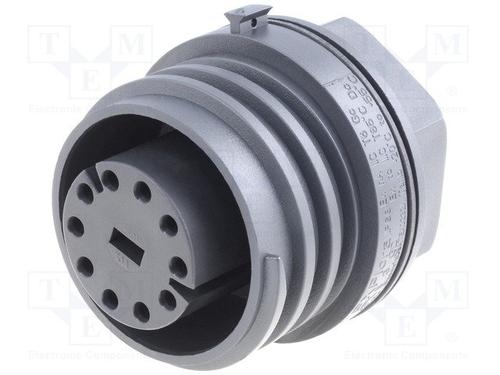

EXP-0931/10/S图片3

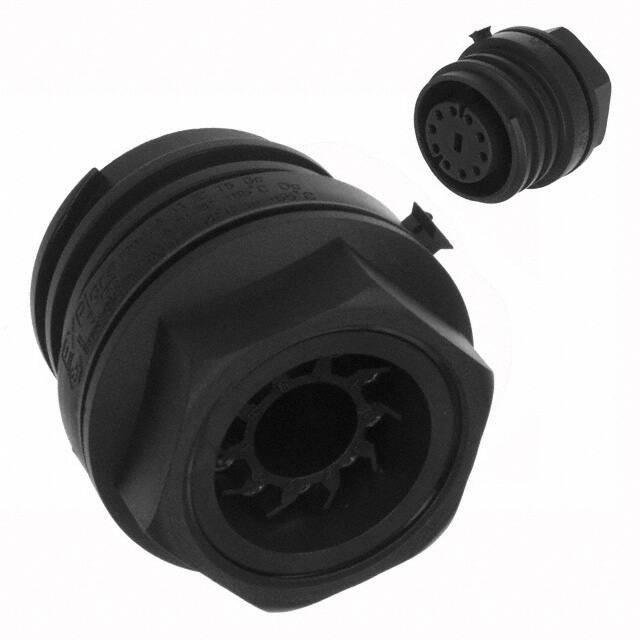

EXP-0931/10/S图片4
EXP-0931/10/S图片5
EXP-0931/10/S图片6
EXP-0931/10/S图片7
EXP-0931/10/S图片8
EXP-0931/10/S图片9
EXP-0931/10/S图片10
EXP-0931/10/S图片11
EXP-0931/10/S概述

EXP-0911 和 EXP-A911 连接器配接 单孔固定 防旋转钥匙 高级密封衬垫 3-7mm 面板厚度 ### Bulgin EXP Series EXPloraBulgin Components EXPlora series of connectors for use in hazardous environments. Tested for use in Zone 2 and 22, the connectors are manufactured from UL94V-0 rated polycarbonate material and are environmentally sealed to IP68.The EXPlora range is suited for manufacturers of secondary electrical equipment such as motors, pumps, lighting equipment, and process and control gear for use in factories and plant where hazardous or explosive atmospheres can be caused by flammable gases, mists, vapors or by combustible dusts.Water and dustproof to IP68 when mated Scoop proof contacts Leading earth pin For 3,4,5 & 7 pole versions Easy assembly, no special tools required Field serviceable,screw termination Positive locating keyways, cannot be mis-mated ### 认可ATEX Approval for Zone 2 and Zone 22 Applications

底盘

与 EXP-0911 和 EXP-A911 连接器配接

单孔固定

防旋转钥匙

高级密封衬垫

3-7mm 面板厚度


欧时:
10路 面板安装 直向 圆形连接器 插座, 插座触点 EXP系列


得捷:
CONN RCPT FMALE 10P NICKEL SCREW


贸泽:
Standard Circular Connector 10 P PANEL MNT SKT ATEX ZONE 2 & 22


艾睿:
Conn Circular SKT 10 POS Screw ST Cable Mount 10 Terminal 1 Port


Allied Electronics:
EXP Series, 10 Pole Panel Mount Conn Socket, 50mm Shell Size, Female Contacts, IP68


Chip1Stop:
Conn Circular SKT 10 POS Screw ST Cable Mount 10 Terminal 1 Port


TME:
Connector: circular; socket; female; PIN:10; EXPlora; IP68; UL94V-0


力源芯城:
10针,标准面板安装连接器


EXP-0931/10/S中文资料参数规格
技术参数

触点数 10

极性 Female

触点电镀 Nickel

额定电流 10 A

易燃性等级 UL 94 V-0

针脚数 10

额定电流Max 10 A

工作温度Max 55 ℃

工作温度Min -20 ℃

额定电压 250VAC, 250VDC

封装参数

安装方式 Panel, Screw

引脚数 10

物理参数

触点材质 Brass

工作温度 -20℃ ~ 55℃

外壳材质 Polyester

其他

产品生命周期 Active

包装方式 Bulk

制造应用 工业级

符合标准

RoHS标准 RoHS Compliant

含铅标准 Lead Free

数据手册

在线购买EXP-0931/10/S
型号: EXP-0931/10/S
制造商: Bulgin Components 布尔金原器件
描述:EXP-0911 和 EXP-A911 连接器配接 单孔固定 防旋转钥匙 高级密封衬垫 3-7mm 面板厚度 ### Bulgin EXP Series EXPlora Bulgin Components EXPlora series of connectors for use in hazardous environments. Tested for use in Zone 2 and 22, the connectors are manufactured from UL94V-0 rated polycarbonate material and are environmentally sealed to IP68.The EXPlora range is suited for manufacturers of secondary electrical equipment such as motors, pumps, lighting equipment, and process and control gear for use in factories and plant where hazardous or explosive atmospheres can be caused by flammable gases, mists, vapors or by combustible dusts. Water and dustproof to IP68 when mated Scoop proof contacts Leading earth pin For 3,4,5 & 7 pole versions Easy assembly, no special tools required Field serviceable,screw termination Positive locating keyways, cannot be mis-mated ### 认可 ATEX Approval for Zone 2 and Zone 22 Applications
