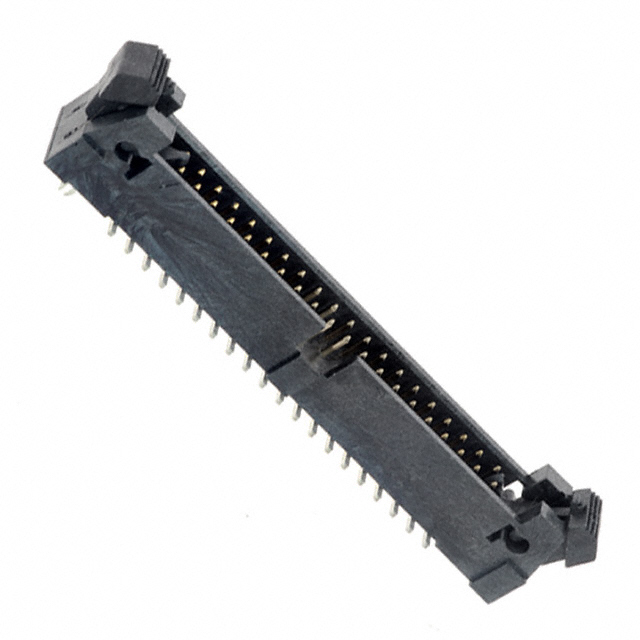

SAMTEC EHT-120-01-S-D-SM-LC Wire-To-Board Connector, 2mm, 40Contacts, Header, EHT Series, Surface Mount, 2Rows
针座 表面贴装型 40 位置 0.079"(2.00mm)
得捷:
CONN HEADER SMD 40POS 2MM
欧时:
2.00 mm Shrouded IDC Ejector Header
艾睿:
Use this ejector EHT-120-01-S-D-SM-LC connector from Samtec when board-to-board interconnects is required. This HDR connector&s;s 40 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. Its pitch is 2 mm. It has a header type gender. This is a 2-row connector. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. It uses the solder termination method. EHT-120-01-S-D-SM-LC is housed in black liquid crystal polymer. This product is 53.79 mm long, 12.31 mm tall and 8.89 mm deep. This connector has an operating temperature of -55 to 125 °C.
Verical:
Conn Ejector Header HDR 40 POS 2mm Solder ST Top Entry SMD Tube
Newark:
# SAMTEC EHT-120-01-S-D-SM-LC Wire-To-Board Connector, 2 mm, 40 Contacts, Header, EHT Series, Surface Mount, 2 Rows
触点数 40
极性 Male
触点电镀 Gold
额定电流 3 A
排数 2
针脚数 40
额定电流Max 3A/触头
工作温度Max 125 ℃
工作温度Min -55 ℃
安装方式 Surface Mount
高度 12.31 mm
外壳颜色 Black
颜色 Black
触点材质 Phosphor Bronze
工作温度 -55℃ ~ 125℃
产品生命周期 Active
包装方式 Tube
制造应用 -
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
EHT-120-01-S-D-SM-LC Samtec 申泰电子 | 当前型号 | 当前型号 |
EHT-120-01-S-D-SM-LC-TR 申泰电子 | 完全替代 | EHT-120-01-S-D-SM-LC和EHT-120-01-S-D-SM-LC-TR的区别 |
