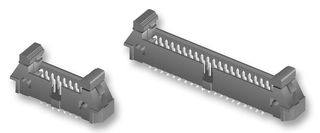

SAMTEC EJH-125-01-S-D-TH Wire-To-Board Connector, 2.54mm, 50Contacts, Header, EJH Series, Through Hole, 2Rows
针座 通孔 50 位置 0.100"（2.54mm）
得捷:
CONN HEADER VERT 50POS 2.54MM
艾睿:
This ejector EJH-125-01-S-D-TH header connector from Samtec reduces the possibility of accidentally shorting pins when a board is being used. This HDR connector&s;s 50 contacts that are made out of phosphor bronze and plated with gold over nickel. It has a straight body orientation. It has a header type gender. This is a 2-row connector. Its pitch is 2.54 mm. This device has a maximum current rating of 3 A/contact. In order to ensure parts aren&s;t damaged by bulk packaging, this product comes in tube packaging to add a little more protection by storing the loose parts in an outer tube. This product is 81.13 mm long, 16.88 mm tall and 9.91 mm deep. EJH-125-01-S-D-TH is housed in liquid crystal polymer. It uses the solder termination method. This connector has an operating temperature of -55 to 125 °C.
安富利:
Conn Ejector Header HDR 50 POS 2.54mm Solder ST Thru-Hole Tube
Newark:
# SAMTEC EJH-125-01-S-D-TH Wire-To-Board Connector, 2.54 mm, 50 Contacts, Header, EJH Series, Through Hole, 2 Rows
