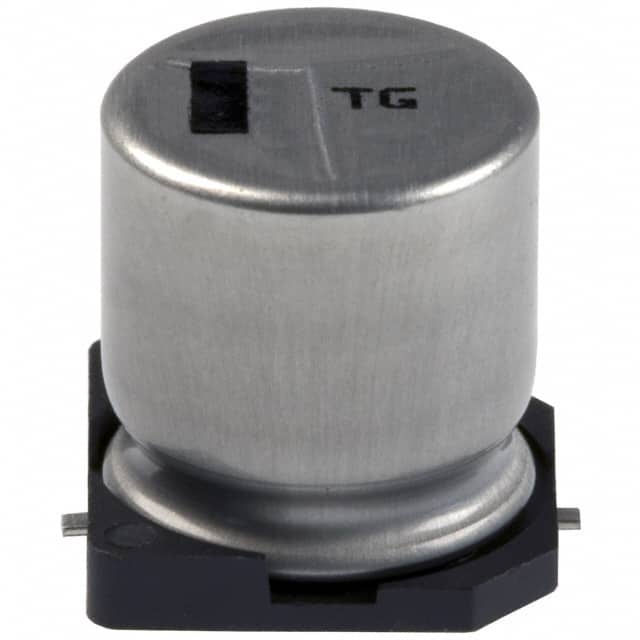

铝电解电容器/ TG Aluminum Electrolytic Capacitor/TG
CAP ALUM 680UF 20% 25V SMD
艾睿:
Are you looking for a capacitor that is low cost, high capacitance and has a high energy density? Then this electrolytic EEV-TG1E681UQ aluminum capacitor from Panasonic is the one for you! It can withstand a voltage of 25 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 125 °C. This product is 13.5 mm tall with a diameter of 12.5 mm. Its leakage current is 170@2Min μA. Its capacitance value is 680uF. It has a tolerance of 20%.
安富利:
Cap Aluminum 680uF 25V 20% 12.5 X 13.5mm SMD 0.12 Ohm 800mA 2000 hr 125°C T/R
额定电压DC 25.0 V
电容 680 µF
等效串联电阻ESR 0.12 Ω
容差 ±20 %
纹波电流 800 mA
工作温度Max 125 ℃
工作温度Min -40 ℃
精度 ±20 %
额定电压 25 V
安装方式 Surface Mount
封装 SMD
长度 13.5 mm
宽度 900 µm
高度 13.5 mm
直径 12.5 mm
封装 SMD
工作温度 -40℃ ~ 125℃
产品生命周期 Unknown
包装方式 Cut Tape CT
最小包装 200
寿命(小时) 2000h @125℃
制造应用 Automotive, 车用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
