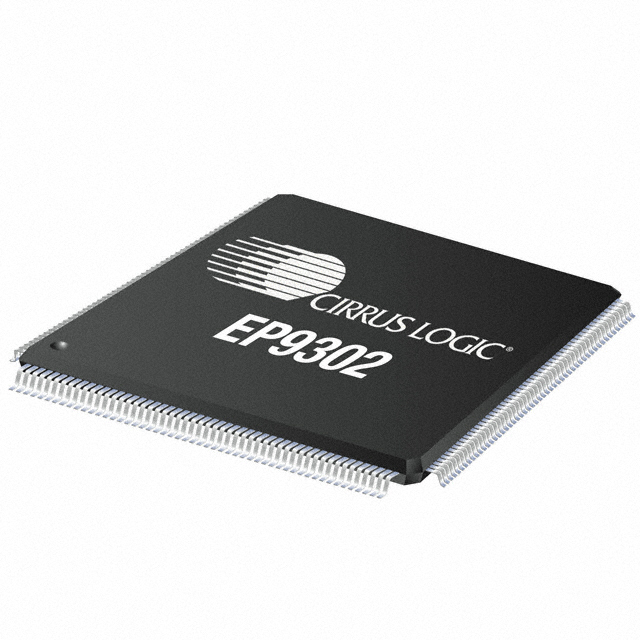

EP9302-IQZ

Processor EP93XX RISC 32Bit 200MHz 208Pin LQFP

OVERVIEW

The EP9302 is an ARM920T-based system-on-a-chip design with a large peripheral set targeted to a variety of applications:

  • Industrial controls

  • Digital media servers

  • Integrated home media gateways

  • Digital audio jukeboxes

  • Streaming audio players

  • Set-top boxes

  • Point-of-sale terminals

  • Thin clients

  • Biometric security systems

  • GPS & fleet management systems

  • Educational toys

  • Industrial computers

  • Industrial hand-held devices

  • Voting machines

  • Medical equipment



FEATURES

• 200-MHz ARM920T Processor

   • 16-kbyte Instruction Cache

   • 16-kbyte Data Cache

   • Linux®, Microsoft® Windows® CE-enabled MMU

   • 100-MHz System Bus

• MaverickCrunch™ Math Engine

   • Floating point, Integer and Signal Processing Instructions

   • Optimized for digital music compression and decompression algorithms.

   • Hardware interlocks allow in-line coding.

• MaverickKey™ IDs

   • 32-bit unique ID can be used for DRM-compliant, 128-bit random ID.

• Integrated Peripheral Interfaces

   • 16-bit SDRAM Interface up to 4 banks

   • 16-bit SRAM / FLASH / ROM

   • Serial EEPROM Interface

   • 1/10/100 Mbps Ethernet MAC

   • Two UARTs

   • Two-port USB 2.0 Full-speed Host OHCI 12 Mbits per second

   • IrDA Interface

   • ADC

   • Serial Peripheral Interface SPI Port

   • 6-channel Serial Audio Interface I2S

   • 2-channel, Low-cost Serial Audio Interface AC"97

• Internal Peripherals

   • 12 Direct Memory Access DMA Channels

   • Real-time Clock with Software Trim

   • Dual PLL controls all clock domains.

   • Watchdog Timer

   • Two General-purpose 16-bit Timers

   • One General-purpose 32-bit Timer

   • One 40-bit Debug Timer

   • Interrupt Controller

   • Boot ROM

• Package

   • 208-pin LQFP
