ZIGBEE MODULE, EM250, MESH, CHIP ANT; Module Applications: AMR, Building Automation, Wireless Sensor Network, M2M Ind...

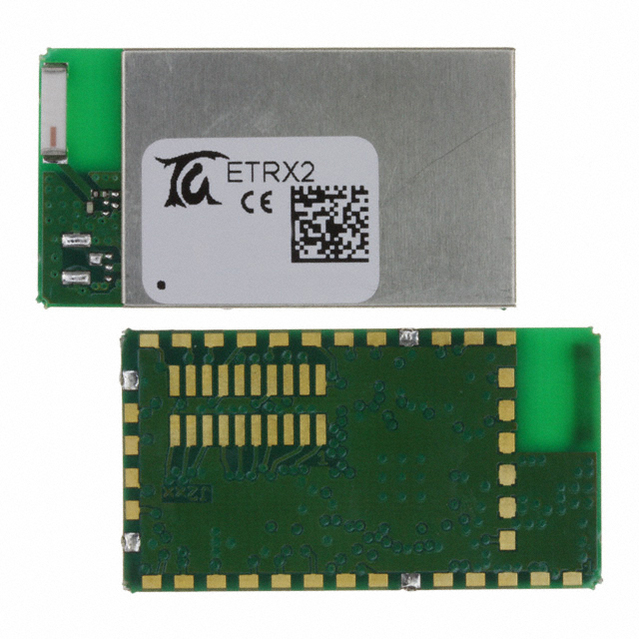

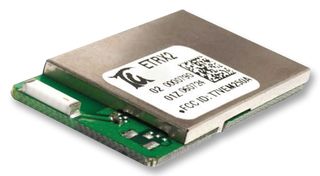

The modules are a low power 2.4GHz ISM band transceiver with Integrated ceramic antenna, based upon the ember EM250 single chip ZigBee / IEEE802.15.4 solution and EmberZNet 2.xx meshing technology. Designed for integration into any device without the need for RF expertise the ETRX2 enables the user to add powerful wireless networking capability to their products and bring them quickly to market. The ETRX2-PA offers boosted output power whilst being a drop in replacement for the standard ETRX2. Care was taken to retain the low deep sleep current to make this module ideally suited for battery operated end devices with the lowest transmit current in its class.
数据速率 250 kbps
电源电压 2.1V ~ 3.6V
电源电压Max 3.6 V
电源电压Min 2.1 V
安装方式 Surface Mount
封装 Module
封装 Module
产品生命周期 End of Life
包装方式 Tape & Reel TR
制造应用 RF Communications, Security, Building Automation, Wireless, Industrial
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/06/15
