ECAS 系列 10 V 150 µF 2917 外壳尺寸 聚合物铝电解电容器

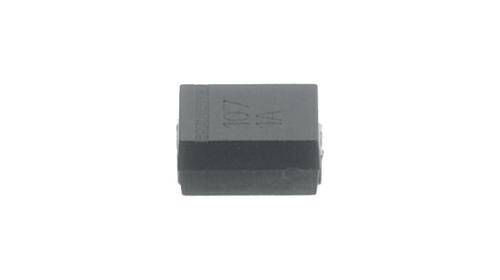

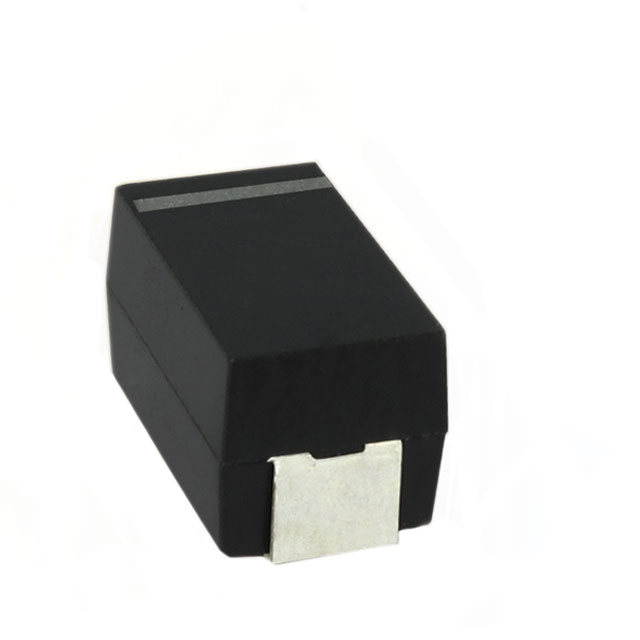

The conductive polymer aluminum solid capacitor, developed by Murata, can easily handle changes to the input load of a circuit. It can withstand a voltage of 10 VDC. It has 2 terminals. This product is 7.3 mm long, 4.2 mm tall and 4.3 mm deep. It has a tolerance of 20%. This conductive polymer aluminum solid capacitor has a minimum operating temperature of -40 °C and a maximum of 105 °C.
额定电压DC 10.0 V
电容 150 µF
等效串联电阻ESR 10 mΩ
容差 ±20 %
产品系列 ECAS
纹波电流 3000 mA
纹波电流低频 3A @100kHz
工作温度Max 105 ℃
工作温度Min -40 ℃
额定电压 10 V
安装方式 Surface Mount
封装 7343
长度 7.3 mm
宽度 4.3 mm
高度 4.2 mm
封装 7343
工作温度 -40℃ ~ 105℃
产品生命周期 Not Recommended for New Design
包装方式 Cut Tape CT
最小包装 2000
寿命(小时) 1000h @105℃
制造应用 通用
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
REACH SVHC版本 2015/12/17
型号/品牌 | 代替类型 | 替代型号对比 |
---|---|---|
ECASD91A157M010K00 muRata 村田 | 当前型号 | 当前型号 |
EEFCX0J151R 松下 | 功能相似 | ECASD91A157M010K00和EEFCX0J151R的区别 |
