EEUFC1A182

FC 系列 1800μF - 15000μFPanasonic FC 系列 A 型电解电容器提供高耐受性、低阻抗解决方案。 这些铝电容器耐受性可达 1000 至 5000 小时。符合 AEC-Q200 径向引线型 低等效串联电阻 结构小型 高可靠性 低阻抗 高波纹电流 ### 应用Panasonic FC A 型电解电容器符合 AEC-Q200 规格，适用于汽车应用。 高可靠性还使这些电解质电容器特别适用于工业仪器应用。 ### 径向 105°C

FC 系列 1800μF - 15000μF

FC 系列 A 型电解器提供高耐受性、低阻抗解决方案。 这些铝电容器耐受性可达 1000 至 5000 小时。

符合 AEC-Q200

径向引线型

低等效串联电阻

结构小型

高可靠性

低阻抗

高波纹电流

欧时:

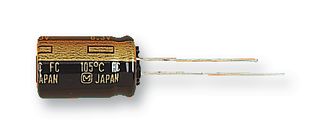

Panasonic 铝电解电容器 FC RADIAL 系列 10V dc 1800μF 通孔 EEUFC1A182, ±20%容差, 38mΩ等值串联

艾睿:
Using this electrolytic EEU-FC1A182 aluminum capacitor from Panasonic in your electronic circuit you&s;ll be able to generate high heat for a given current level due to its relatively high equivalent series resistance. It can withstand a voltage of 10 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This product is 20 mm tall with a diameter of 12.5 mm. Its leakage current is 180@2Min μA. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. It has a tolerance of 20%. Its capacitance value is 1800uF. The EEU-FC1A182 aluminum electrolytic capacitor has a radial termination style.

安富利:
Cap Aluminum 1800uF 10V 20% 12.5 X 20mm Radial 5mm 1655mA 5000 hr 105°C Bulk

Newark:
# PANASONIC ELECTRONIC COMPONENTS  EEUFC1A182  Aluminium Electrolytic Capacitor, AEC-Q200 FC Series, 1800 - F, - 20%, 10 V, 12.5 mm
