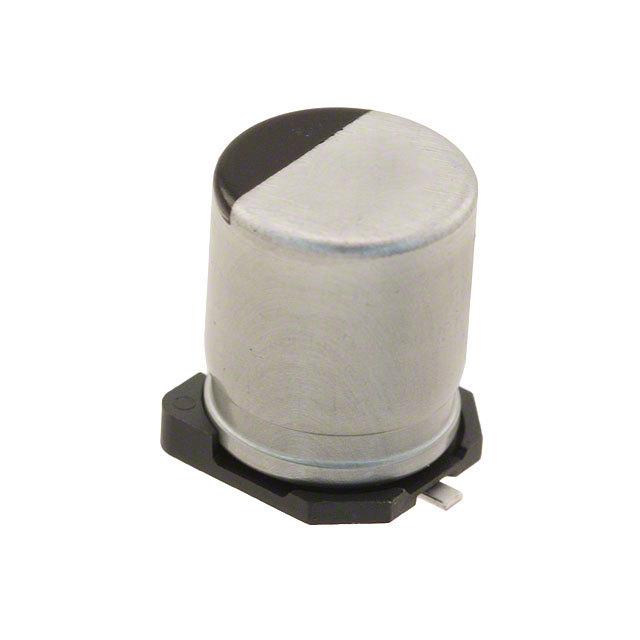

Cap Aluminum Polymer Hybrid 33uF 63VDC 20% 8 X 10.2mm SMD 0.04Ω 1600mA 10000H 105℃ Automotive T/R
33 µF 63 V 铝聚合物器 径向，Can - SMD 40 毫欧 105°C 时为 10000 小时
得捷:
CAP ALUM POLY HYB 33UF 63V SMD
艾睿:
Cap Aluminum Polymer Hybrid 33uF 63VDC 20% 8 X 10.2mm SMD 0.04 Ohm 1600mA 10000h 105°C Automotive T/R
Chip1Stop:
Cap Aluminum Polymer Hybrid 33uF 63VDC 20% 8 X 10.2mm SMD 0.04 Ohm 1600mA 10000h 105C Embossed T/R
Verical:
Cap Aluminum Polymer Hybrid 33uF 63VDC 20% 8 X 10.2mm SMD 0.04 Ohm 1600mA 10000h 105C Automotive T/R
Newark:
# PANASONIC ELECTRONIC COMPONENTS EEH-ZA1J330P SMD Aluminum Electrolytic Capacitor, Hybrid SMD, Radial Can - SMD, 33 µF, 63 V, 0.04 ohm, ZA Series
MASTER:
Cap Aluminum Polymer Hybrid 33uF 63VDC 20% 8 X 10.2mm SMD 0.04 Ohm 1700mA 10000h 105°C Automotive T/R
Online Components:
Cap Aluminum Polymer Hybrid 33uF 63VDC 20% 8 X 10.2mm SMD 0.04 Ohm 1600mA 10000h 105°C Automotive T/R
Electro Sonic:
Cap Aluminum Polymer Hybrid 33uF 63VDC 20% 8 X 10.2mm SMD 0.04 Ohm 1700mA 10000h 105°C Automotive T/R
额定电压DC 63.0 V
电容 33 µF
等效串联电阻ESR 0.04 Ω
容差 ±20 %
纹波电流 1600 mA
纹波电流高频 170 mA
纹波电流低频 1.7 A
工作温度Max 105 ℃
工作温度Min -55 ℃
额定电压 63 V
安装方式 Surface Mount
封装 SMD
高度 10.2 mm
直径 8.00 mm
封装 SMD
工作温度 -55℃ ~ 105℃
产品生命周期 Unknown
包装方式 Tape & Reel TR
寿命（小时） 10000 h
制造应用 -, 汽车级
RoHS标准 RoHS Compliant
含铅标准 Lead Free
ECCN代码 EAR99
HTS代码 8532220040
