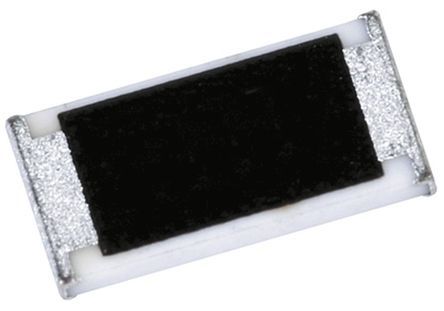

ERJ8ENF5600V

PANASONIC ELECTRONIC COMPONENTS  ERJ8ENF5600V  片式电阻器, 表面贴装, 厚膜, AEC-Q200 ERJ系列, 560 ohm, 200 V, 1206 [3216公制], 250 mW, ± 1%

1206 格式器，ERJ8EN 系列 - 1%

ERJ8EN 精密电阻器由三层电极和金属上釉电阻厚膜元件构成。 采用轻型、紧凑型结构，这些芯片电阻器是具有低电阻容差的高可靠性解决方案。 ERJ8EN 芯片电阻器与回流和流动焊接兼容，且可用于自动贴片机。

### 产品应用信息

这些芯片电阻器具有 AEC-Q200 资格，适用于汽车应用。

### 标准

IEC 60115-8，JIS C 5201-8，EIAJ RC-2134B

欧时:
Panasonic ERJ 系列 0.25W 560Ω 精密厚膜SMD 电阻器 ERJ8ENF5600V, ±1%, ±100ppm/°C, 1206 封装

e络盟:
SMD片式电阻, 厚膜, 1206 [3216公制], 560 ohm, ERJ8E 系列, 200 V, 厚膜, 250 mW

艾睿:
The ERJ-8ENF5600V fixed single surface-mount resistor from Panasonic makes it easy to add resistors to your circuit board. This part has a power rating of 0.25 1/4 W. This product has a resistance value of 560 Ohm. Its temperature coefficient is ±100 ppm/°C. This product will be shipped in tape and reel packaging so that components can be mounted effectively. It has a tolerance of 1%. This part has an operating temperature of -55 to 155 °C. This device utilizes thick film technology. This product is 3.2 mm long, 0.6 mm tall and 1.6 mm deep.

安富利:
Res Thick Film 1206 560 Ohm 1% 1/4W ±100ppm/°C Molded SMD SMD Punched Carrier T/R

Verical:
Res Thick Film 1206 560 Ohm 1% 0.25W1/4W ±100ppm/C Molded SMD Automotive T/R

Newark:
# PANASONIC ELECTRONIC COMPONENTS  ERJ8ENF5600V  RES, THICK FILM, 560R, 1%, 0.25W, 1206
