ELJFCR47KF

ELJFCR47KF 470nH/0.47UH 2520-R47K R47

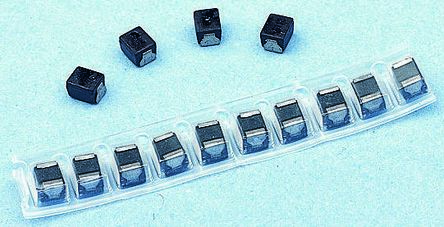

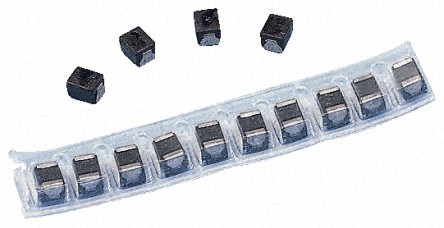

值Inductance| 470nH/0.47UH \---|--- 误差Tolerance| ±10% 额定电流Current Rating| 155mA 饱和电流Current - Saturation| 不同频率时的Q值Q @ Frequency| 25 @ 25.2MHz 自振谐频率SRFFrequency - Self Resonant| 160MHz DC电阻DCRDC Resistance DCR| 1.0Ω/Ohm 屏蔽Shielding| 无屏蔽 Unshielded Description & Applications| ● General use wire wound and resin molded chip inductor. Features ● High Q ● Good for mounting ● Wide allowable range 1.0 nH to 1000 µH ● Recommended Applications ● CTV, VTR, HIC, HDD, FDD, Cordless telephones, Portable telephones Pagers, Video cameras 描述与应用| ●通用线绕和树脂模压片式电感器。  特点  ●高Q值 ●适合安装 ●允许的范围宽（1.0 nH至1000μH） ●推荐应用 ●CTV，VTR，HIC，硬盘，软驱，无绳电话，便携式电话 寻呼机，视频摄像头
