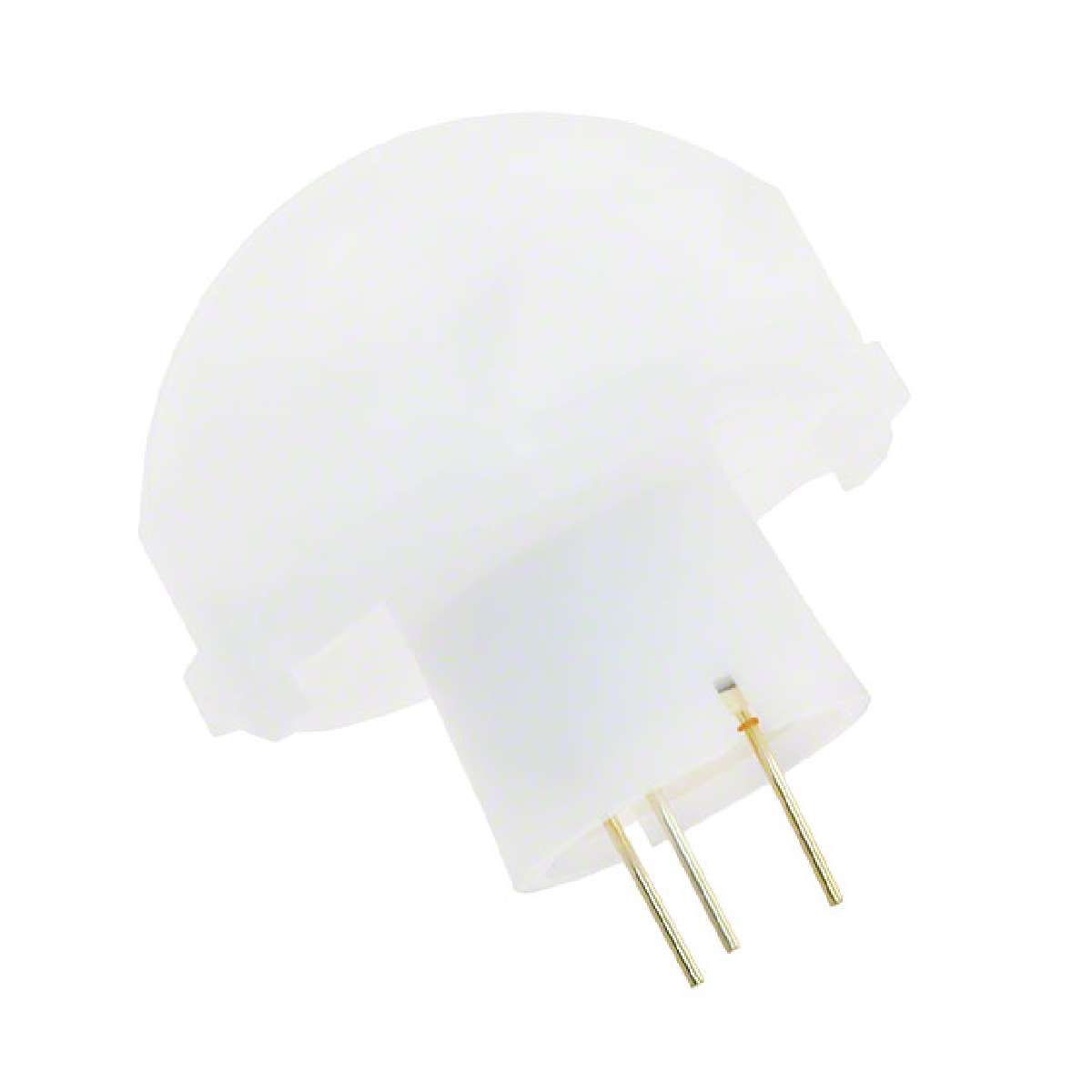

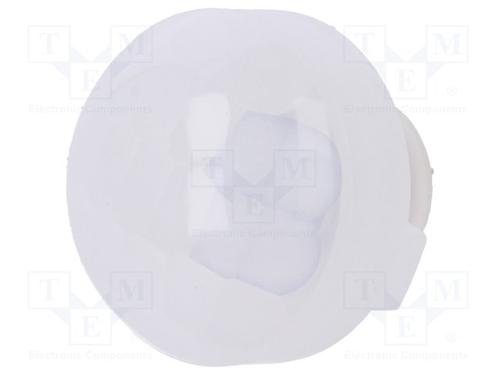

PANASONIC ELECTRIC WORKS EKMC1603111 无源红外传感器, PaPIRS, 数字, 白色, 12 m, 3 VDC, 6 VDC, 102 °, EKMC Series
板机接口移动感应器和位置传感器
欧时:
PIR sensor, 170uA, Long Distance, White
得捷:
SENSOR MOTION PIR 12M RANGE WHT
艾睿:
PIR Sensor Digital 1-CH 3-Pin
安富利:
PIR Motion Sensor Long Distance Detection 3-Pin
TME:
Sensor: motion; diffuse-reflective; Output conf: digital; 12m
Verical:
PIR Sensor Digital 12m 1-CH 3-Pin
Newark:
PIR Sensor, PaPIRS, Digital, White, 12 m, 3 VDC, 6 VDC, 102 °, EKMC Series
MASTER:
PIR Sensor Digital 12m 1-CH 3-Pin
Electro Sonic:
PIR Sensor Digital 12m 1-CH 3-Pin
电源电压DC 3.00V min
输出电流 200 µA
工作温度Max 60 ℃
工作温度Min -20 ℃
电源电压 3V ~ 6V
电源电压Max 6 VDC
电源电压Min 3 VDC
安装方式 Through Hole
引脚数 3
封装 TO-5
高度 20.2 mm
封装 TO-5
工作温度 -20℃ ~ 60℃ TA
产品生命周期 Active
包装方式 Bulk
制造应用 Buil, Portable Devices, 传感与仪器, 建筑自动化, 消费电子产品, Consumer Electronics, Sensing & Instrumentation, Consumer Electronics, Building Automation, Portable De, 便携式器材
RoHS标准 RoHS Compliant
含铅标准 Lead Free
REACH SVHC标准 No SVHC
ECCN代码 EAR99
