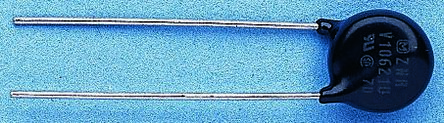

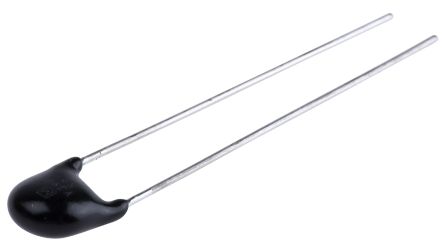

ERZV05D390

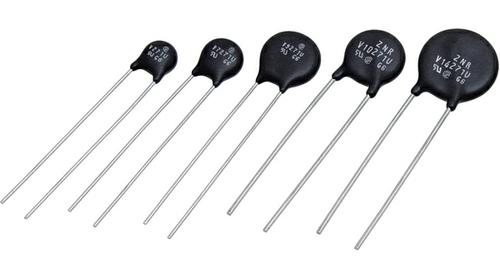

ZNR 系列，5mm 直径，Panasonic相对于紧凑的结构而言，具有较大的浪涌电流处理能力 相对于标准变速器而言，提升了 2 浪涌电流处理能力 类型 | 直径 （标称 /最大）mm | 节距 mm | 高度（印刷电路板上） mm ---|---|---|--- ERZV05 | 5 / 7 | 5 ±1 | 10 ERZV07 | 7 / 8.5 | 5 ±1 | 11.5 ERZV10 | 10 / 12.5 | 7.5 ±1 | 15.5 ERZV14 | 14 / 16 | 7.5 ±1 | 19 ERZV20 | 20 / 21.5 | 10 ±1 | 24.5 ### 瞬态电压抑制器 径向金属氧化物变阻器

ZNR Series 25 VAC 31 VDC 1 A 700 pF Type D Through Hole Varistor

欧时:
Panasonic ZNR 系列 700pF 1A 86V 金属氧化物压敏电阻 ERZV05D390, 7 Dia. x 4.5mm

艾睿:
Look no further, this ERZ-V05D390 MOV from Panasonic is a variable resistor. Its maximum surge current is 250 A. This part has a pitch of 5 mm. This device&s;s clamping current is 1 A and clamping voltage is 86 V. This voltage dependent resistor has an operating temperature of -40 to 85 °C. This product comes packaged in bulk, so the parts will be stored loosely. The maximum AC voltage rating is 25 VAC and the maximum DC voltage rating is 31 VDC. This varistor has a voltage of 39 V. Its capacitance value is 700pF. This product is 10 mm tall and 4.5 mm deep with a diameter of 7 mm.

安富利:
Var 25VAC/31VDC 250A 39V Radial Bulk

Chip1Stop:
Var 25VAC 31VDC 250A 39V Thru-Hole Bulk
