ERZV05D391

PANASONIC ELECTRONIC COMPONENTS  ERZV05D391  TVS压敏电阻, V系列, 250 V, 320 V, 675 V, 片状 5mm, 高涌流抑制

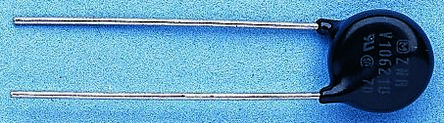

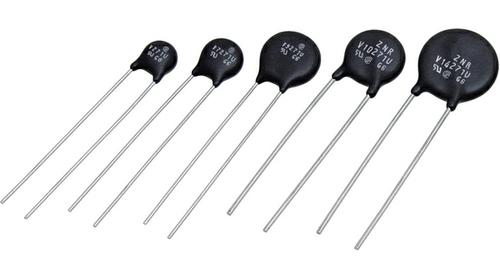

金属氧化物变阻器 ZNR 系列，5mm 直径，

相对于紧凑的结构而言，具有较大的浪涌电流处理能力

相对于标准变速器而言，提升了 2 浪涌电流处理能力

欧时:
Panasonic ZNR 系列 80pF 5A 675V 金属氧化物压敏电阻 ERZV05D391, 7 Dia. x 5.4mm

e络盟:
PANASONIC ELECTRONIC COMPONENTS  ERZV05D391  TVS压敏电阻, V系列, 250 V, 320 V, 675 V, 片状 5mm, 高涌流抑制

艾睿:
This ERZ-V05D391 MOV from Panasonic is a nonlinear resistor, the resistance of it will change when different voltages are applied to it. Its maximum surge current is 800 A. This part has a pitch of 5 mm. This device&s;s clamping current is 5 A and clamping voltage is 675 V. This voltage dependent resistor has an operating temperature of -40 to 85 °C. This product comes packaged in bulk, so the parts will be stored loosely. This varistor has a voltage of 390 V. Its capacitance value is 80pF. This product is 10 mm tall and 5.4 mm deep with a diameter of 7 mm. The maximum AC voltage rating is 250 VAC and the maximum DC voltage rating is 320 VDC.

安富利:
Var 250VAC/320VDC 800A 390V Radial Bulk

Chip1Stop:
Var 250VAC 320VDC 800A 390V Thru-Hole Bulk
