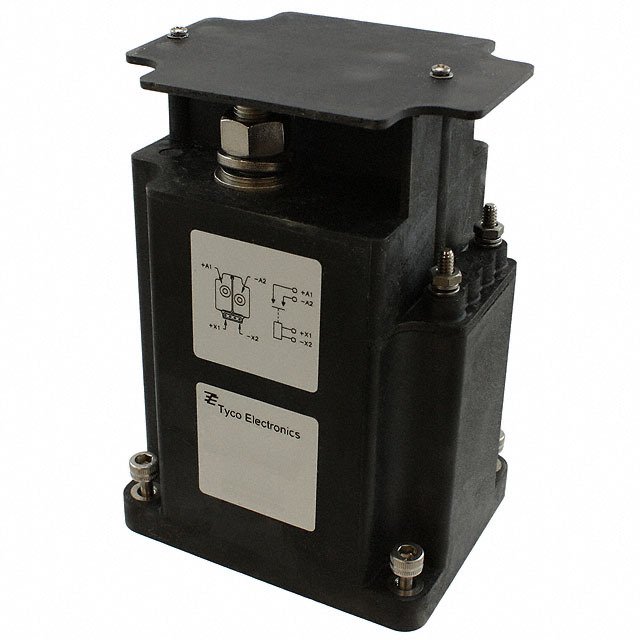

Electromechanical Relay 24VDC 14.12Ω 600A SPST-NO-DM86.4x66.8x124.46mm Control Relay
通用 继电器 SPST-NO（DM）（1 Form X） 24VDC 线圈 底座安装
得捷:
RELAY GEN PURPOSE SPST 750A 24V
贸泽:
General Purpose Relays 1FormA SPST-NO PNL
艾睿:
Electromechanical Relay 24VDC 14.12Ohm 600A SPST-NO-DM86.4x66.8x124.46mm Control Relay
Chip1Stop:
Electromechanical Relay SPST-NO-DM 600A 24VDC 14.12Ohm
Verical:
Power Relay 24VDC 14.12Ohm 600A SPST-NO-DM86.4x66.8x124.46mm Control Relay
MASTER:
Electromechanical Relay 24VDC 14.12Ohm 600A SPST-NO-DM 86.4x66.8x124.46mm Control Relay
Electro Sonic:
Electromechanical Relay 24VDC 14.12Ohm 600A SPST-NO-DM 86.4x66.8x124.46mm Control Relay
额定电压DC 270 V
触点额定电流 600 A
线圈电压 24 VDC
线圈电流 1700 mA
线圈电阻 14.12 Ω
额定电流Max 750 A
线圈电压DC 24 V
工作温度Max 85 ℃
工作温度Min -40 ℃
安装方式 Panel
长度 86.4 mm
宽度 66.8 mm
高度 124.46 mm
工作温度 -40℃ ~ 85℃
产品生命周期 Active
包装方式 Bulk
RoHS标准 Non-Compliant
含铅标准 Contains Lead
ELV标准 Non-Compliant
ECCN代码 EAR99
HTS代码 8536410020
