EKXG401ELL220MK20S

UNITED CHEMI-CON  EKXG401ELL220MK20S  铝电解电容, 微型, KXG系列, 22 µF, ± 20%, 400 V, 12.5 mm, 径向引线

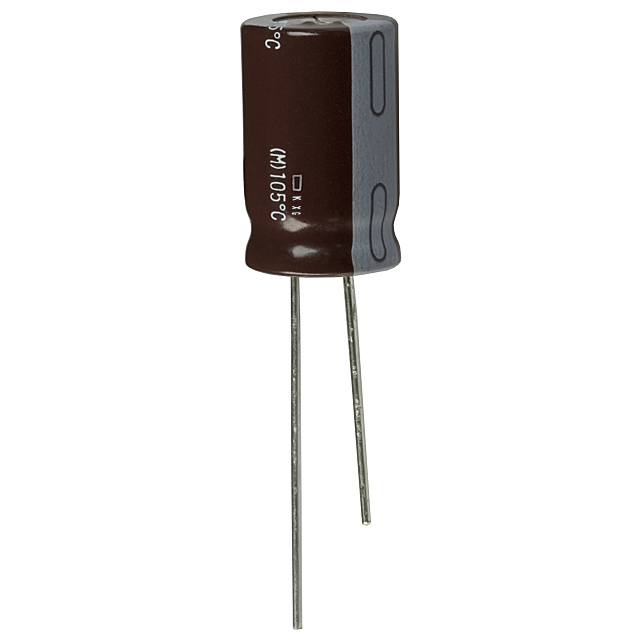

The is a radial leaded miniature aluminium Electrolytic Capacitor for electronic ballast circuits and other long life applications. KXG series is non solvent resistant type.

.

High ripple current

得捷:
CAP ALUM 22UF 20% 400V RADIAL

e络盟:
铝电解电容, 微型, 22 µF, 400 V, KXG系列, ± 20%, 径向引线, 12.5 mm

艾睿:
If you need to filter lower signal frequencies, then this electrolytic EKXG401ELL220MK20S aluminum capacitor, developed by United Chemi-con, is the tool you need. It can withstand a voltage of 400 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. Its capacitance value is 22uF. This product is 20 mm tall with a diameter of 12.5 mm. The EKXG401ELL220MK20S aluminum electrolytic capacitor has a radial termination style. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. It has a tolerance of 20%. Its leakage current is 452@1Min|201@5Min μA.

安富利:
NCCEKXG401ELL220MK20S CM2 KXG 400V/22u

Chip1Stop:
Cap Aluminum Lytic 22uF 400V 20% 12.5 X 20mm Radial 5mm 260mA 10000h 105℃ Bulk

Verical:
Cap Aluminum Lytic 22uF 400V 20% 12.5 X 20mm Radial 5mm 260mA 10000h 105C Bulk

Newark:
# UNITED CHEMI-CON  EKXG401ELL220MK20S  Electrolytic Capacitor, Miniature, 22 µF, 400 V, KXG Series, ± 20%, Radial Leaded, 12.5 mm

MASTER:
Cap Aluminum Lytic 22uF 400V 20% 12.5 X 20mm Radial 5mm 260mA 10000h 105°C Bulk

Online Components:
Cap Aluminum Lytic 22uF 400V 20% 12.5 X 20mm Radial 5mm 260mA 10000h 105°C Bulk

Electro Sonic:
Cap Aluminum Lytic 22uF 400V 20% 12.5 X 20mm Radial 5mm 260mA 10000h 105°C Bulk
