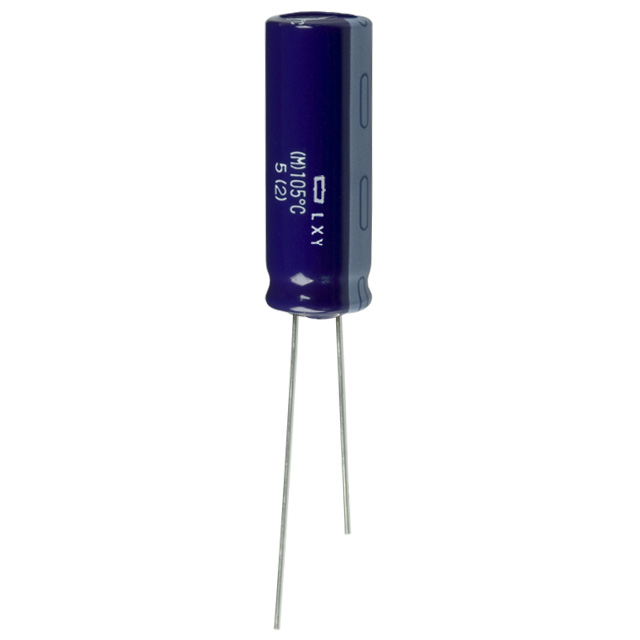

ELXY350ELL561MJ30S

UNITED CHEMI-CON  ELXY350ELL561MJ30S  铝电解电容, 560uF, 35V

铝电解器 径向，Can - 105°C 时为 5000 小时

得捷:
CAP ALUM 560UF 20% 35V RADIAL

e络盟:
铝电解电容, 560uF, 35V

艾睿:

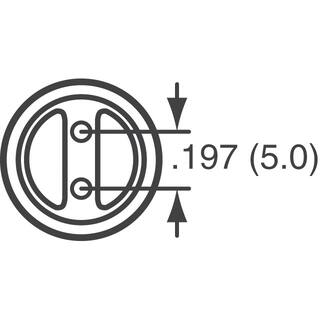

Use this relatively high equivalent series resistance electrolytic ELXY350ELL561MJ30S aluminum capacitor from United Chemi-con to generate high heat for a given current level. It can withstand a voltage of 35 VDC. This aluminum electrolytic capacitor has a maximum operating temperature of 105 °C. This part has a lead diameter of 0.6 mm and a pitch of 5 mm. Its capacitance value is 560uF. The ELXY350ELL561MJ30S aluminum electrolytic capacitor has a radial termination style. Its leakage current is 196@2Min μA. This product is 30 mm tall with a diameter of 10 mm. It has a tolerance of 20%.

Verical:
Cap Aluminum Lytic 560uF 35V 20% 10 X 30mm Radial 5mm 1440mA 5000h 105C Automotive Bulk

MASTER:
Cap Aluminum Lytic 560uF 35V 20% 10 X 30mm Radial 5mm 1440mA 5000h 105°C Automotive Bulk

Electro Sonic:
Cap Aluminum Lytic 560uF 35V 20% 10 X 30mm Radial 5mm 1440mA 5000h 105°C Automotive Bulk
